SKU: KMK3-SKF

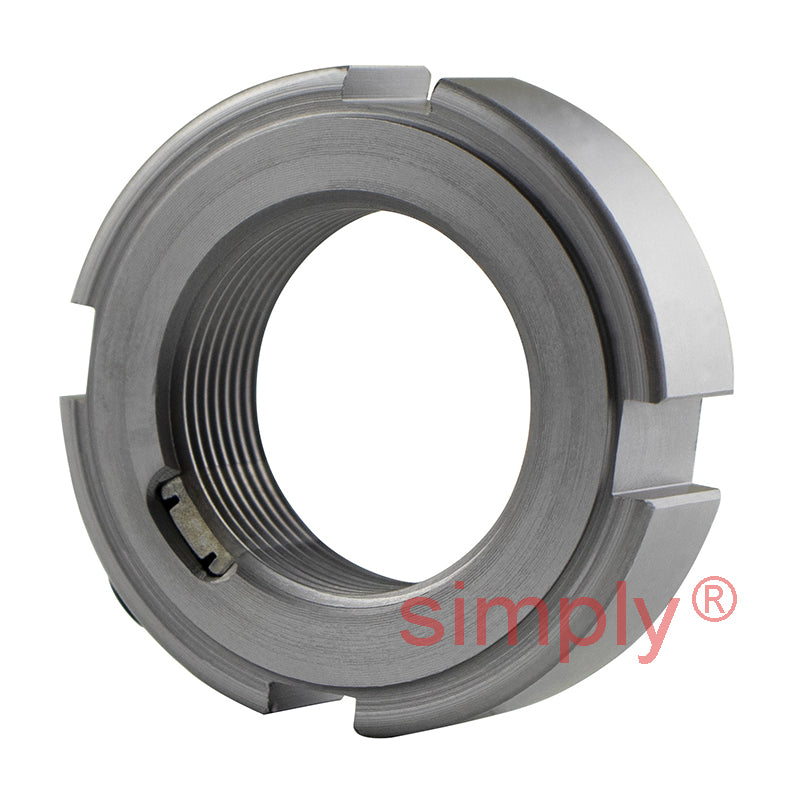

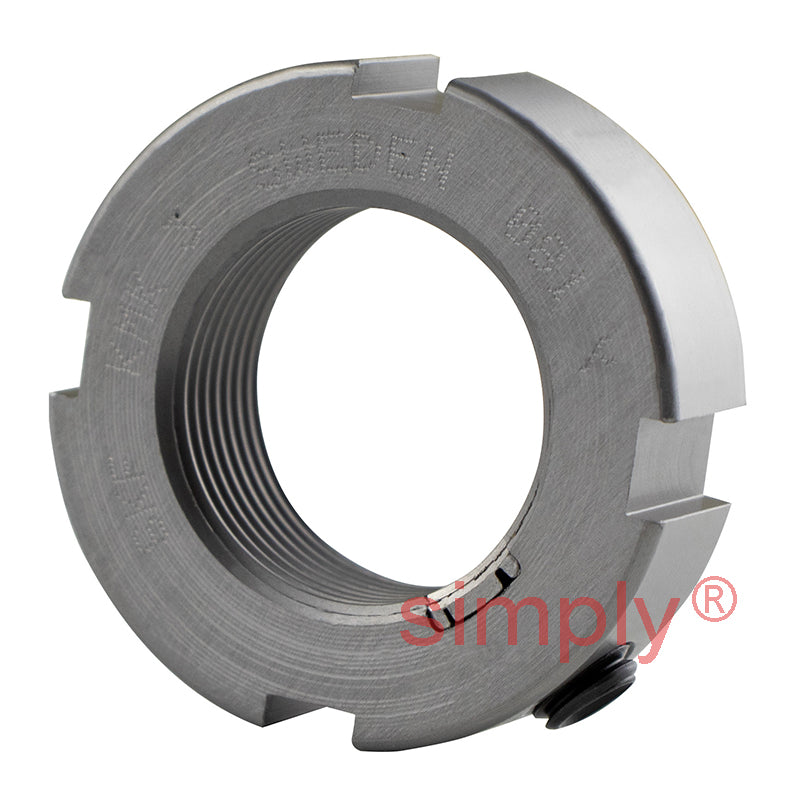

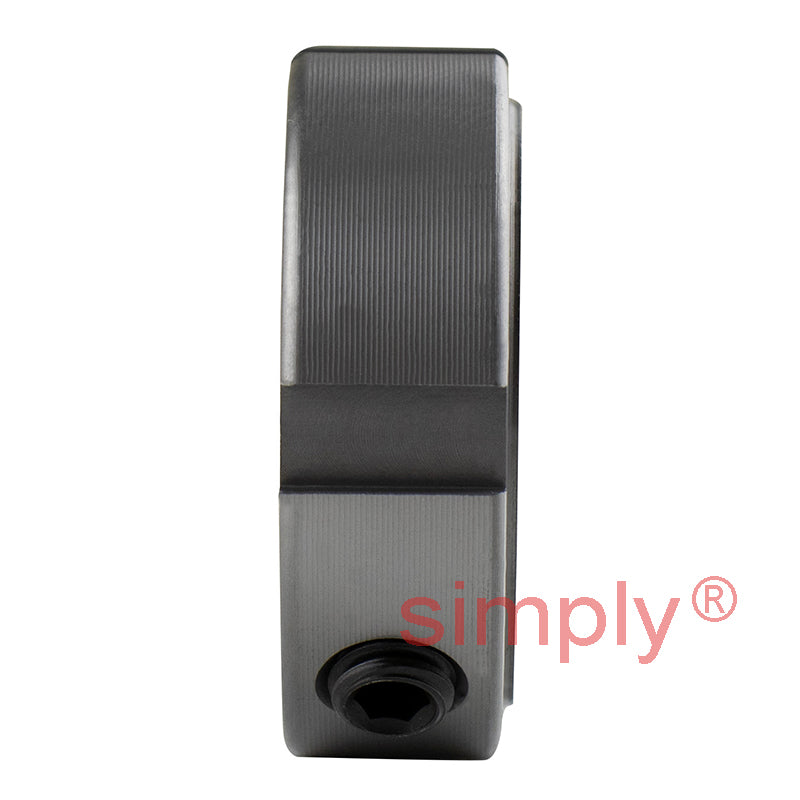

SKF KMK3 Lock Nut with Integral Locking Device M17x1mm
SKF KMK3 Lock Nut with Integral Locking Device M17x1mm
Regular price
Rs. 5,064.28
ex VAT
Regular price
Sale price
Rs. 5,064.28
ex VAT
In stock
Price Break
10+
Rs. 4,507.21
19+
Rs. 4,254.00
29+
Rs. 4,203.35
39+
Rs. 4,152.71
49+
Rs. 4,102.07
74+
Rs. 4,051.42
99+
Rs. 3,798.21
199+
Rs. 3,747.57
249+
Rs. 3,696.92
499+
Rs. 3,646.28
999+
Rs. 3,545.00
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M17x1
Technical
Technical
| d1 | 24mm |
|---|---|
| d3 | 28mm |
| B | 9mm |
| b | 4mm |
| h | 2mm |
| Axial load capacity | 19.6 kN |
| Loosening torque | 13 Nm |
| Weight | 0.027 kg |
| G | M17x1 |
| Designation | KMK3 |
| Locking device | HN3 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
