SKU: KMK20-SKF

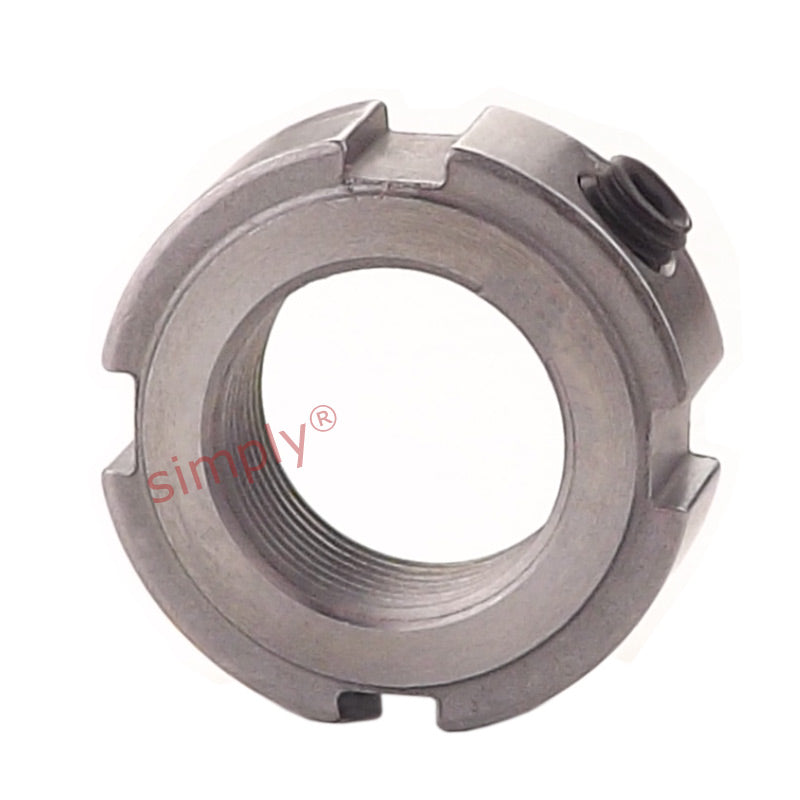

SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
Regular price
Rs. 14,997.28
ex VAT
Regular price
Sale price
Rs. 14,997.28
ex VAT
Low stock
Price Break
10+
Rs. 13,347.58
19+
Rs. 12,597.72
29+
Rs. 12,447.74
39+
Rs. 12,297.77
49+
Rs. 12,147.80
74+
Rs. 11,997.82
99+
Rs. 11,247.96
199+
Rs. 11,097.99
249+
Rs. 10,948.01
499+
Rs. 10,798.04
999+
Rs. 10,498.10
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M100x2
Technical
Technical
| d1 | 122mm |
|---|---|
| d3 | 130mm |
| B | 20mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 255 kN |
| Loosening torque | 472 Nm |
| Weight | 0.8 kg |
| G | M100x2 |
| Designation | KMK20 |
| Locking device | HN20 |
| Grub screw | M10 |
| Grub screw torque | 35 Nm |
