SKU: KMFE9-SKF

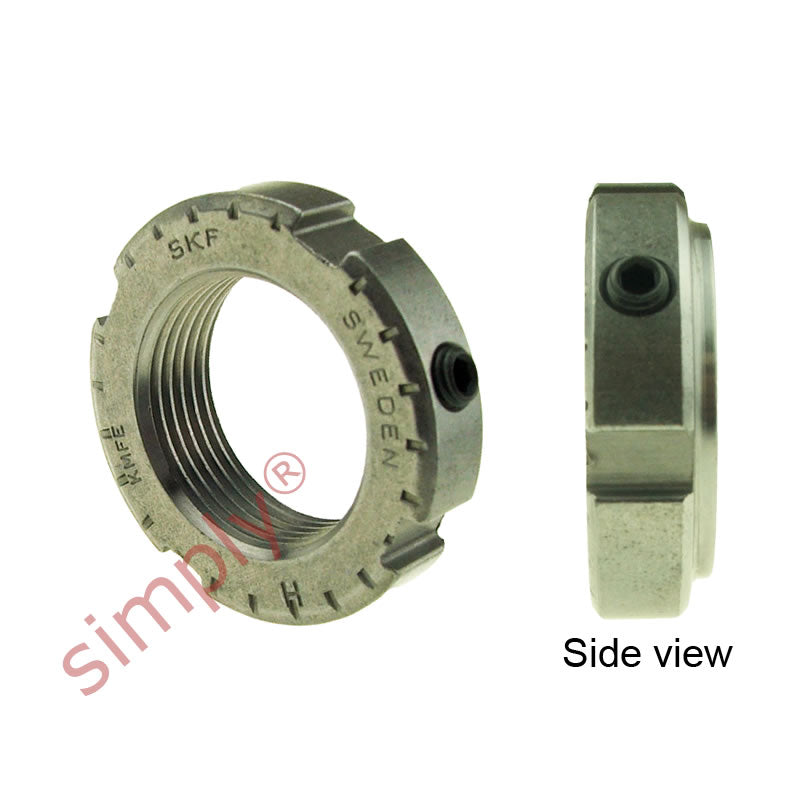

SKF KMFE9 Lock Nut with Locking Screw M45x1.5mm
SKF KMFE9 Lock Nut with Locking Screw M45x1.5mm
Regular price
Rs. 7,090.91
ex VAT
Regular price
Sale price
Rs. 7,090.91
ex VAT
In stock
Price Break
5+
Rs. 7,020.00
10+
Rs. 6,736.36
20+
Rs. 6,594.55
50+
Rs. 6,381.82
100+
Rs. 6,240.00
500+
Rs. 5,885.46
1000+
Rs. 4,963.64
Couldn't load pickup availability
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M45x1.5
Technical
Technical
| d1 | 53mm |
|---|---|
| d3 | 65mm |
| B | 13mm |
| B1 | 10mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 78 kN |
| Looseing torque | 94 Nm |
| Weight | 0.14 kg |
| G | M45x1.5 |
| Designation | KMFE9 |
| Spanner | HN9 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
