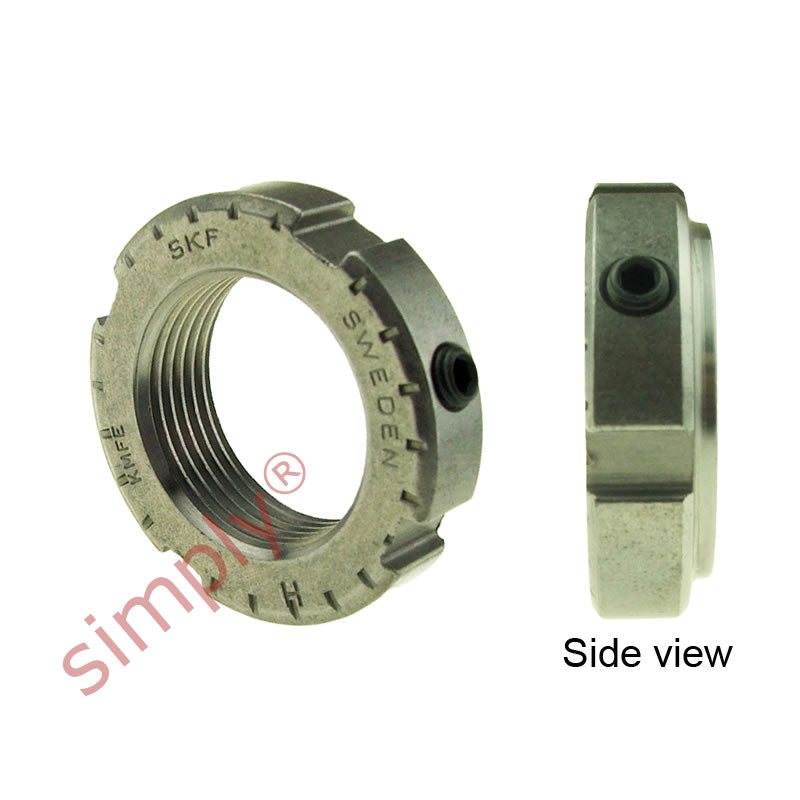

SKF KMFE22 Lock Nut with Locking Screw M110x2mm - Allow 2-3 Days
SKF KMFE22 Lock Nut with Locking Screw M110x2mm - Allow 2-3 Days
Regular price
Rs. 14,184.48
Regular price
Sale price
Rs. 14,184.48
Taxes included.
In stock
Price Break
5+
Rs. 14,042.64
10+
Rs. 13,475.26
20+
Rs. 13,191.57
50+
Rs. 12,766.03
100+
Rs. 12,482.34
500+
Rs. 11,773.12
1000+
Rs. 9,929.14
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M110x2
Technical
Technical
| d1 | 122mm |
|---|---|
| d3 | 145mm |
| B | 21.5mm |
| B1 | 17.5mm |
| b | 12mm |
| h | 5mm |
| Axial load capacity | 310 kN |
| Looseing torque | 410 Nm |
| Weight | 0.93 kg |
| G | M110x2 |
| Designation | KMFE22 |
| Spanner | HN22 |
| Grub | M8 |
| Screw tightening torque | 18 Nm |
