SKU: KH4060LL/3AS-NTN
NTN KH4060LL/3AS Relubricatable Linear Ball Bushing 40x52x60mm
NTN KH4060LL/3AS Relubricatable Linear Ball Bushing 40x52x60mm
Regular price
Rs. 3,191.51
Regular price
Sale price
Rs. 3,191.51
Taxes included.
Low stock
Price Break
10+
Rs. 2,840.44
19+
Rs. 2,680.87
29+
Rs. 2,648.95
39+
Rs. 2,617.04
49+
Rs. 2,585.12
74+
Rs. 2,553.21
99+
Rs. 2,393.63
199+
Rs. 2,361.72
249+
Rs. 2,329.80
499+
Rs. 2,297.89
999+
Rs. 2,234.06
Description
Description
NTN KH Linear Ball Bushings: KH linear ball bushings are compact and economical solutions designed for applications with limited radial space. Their low radial section height ensures optimal performance in tight installation environments, while the closed design makes them suitable for use directly on shafts. Pre-lubricated with high-quality grease, these bearings are maintenance-free in many applications. When required, they can also be re-lubricated via openings in the outer ring, ensuring long service life. KH bushings offer versatility across a wide range of applications.
Benefits: Economical, maintenance-free, re-lubricatable
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 60mm
Technical
Technical

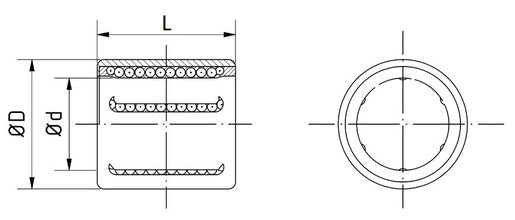

| d - Inside diameter | 40mm |
|---|---|
| D - Outside diameter | 52mm |
| L - Width | 60mm |
| Re-lubricatable | Yes |
| Number of ball rows | 8 |
| Cmin | 4250 N |
| Cmax | 4250 N |
| C0min | 4000 N |
| C0max | 4000 N |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +80 Deg C |
