SKU: KH12-KBS

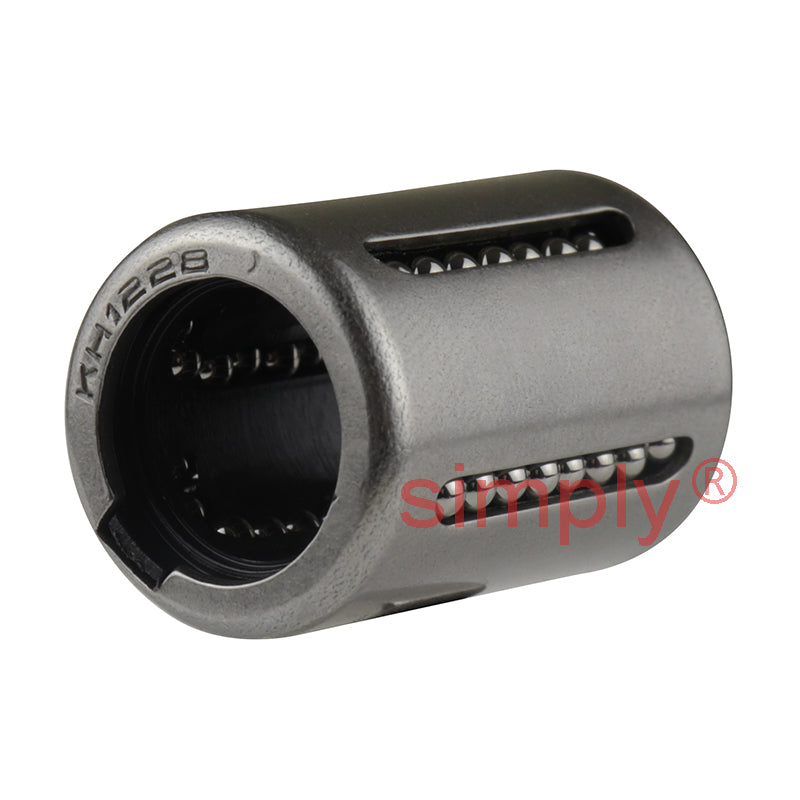

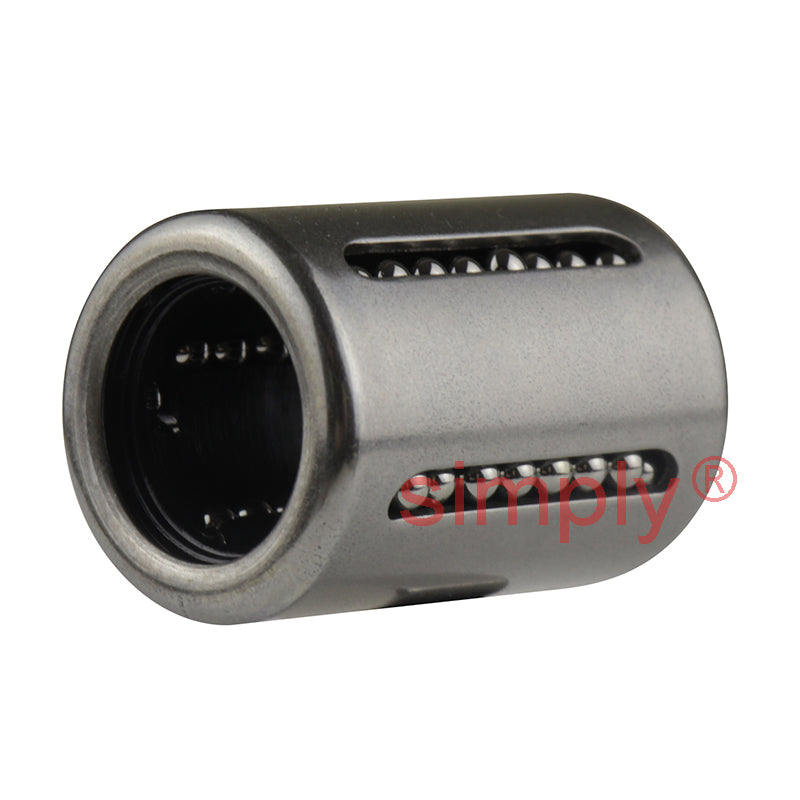

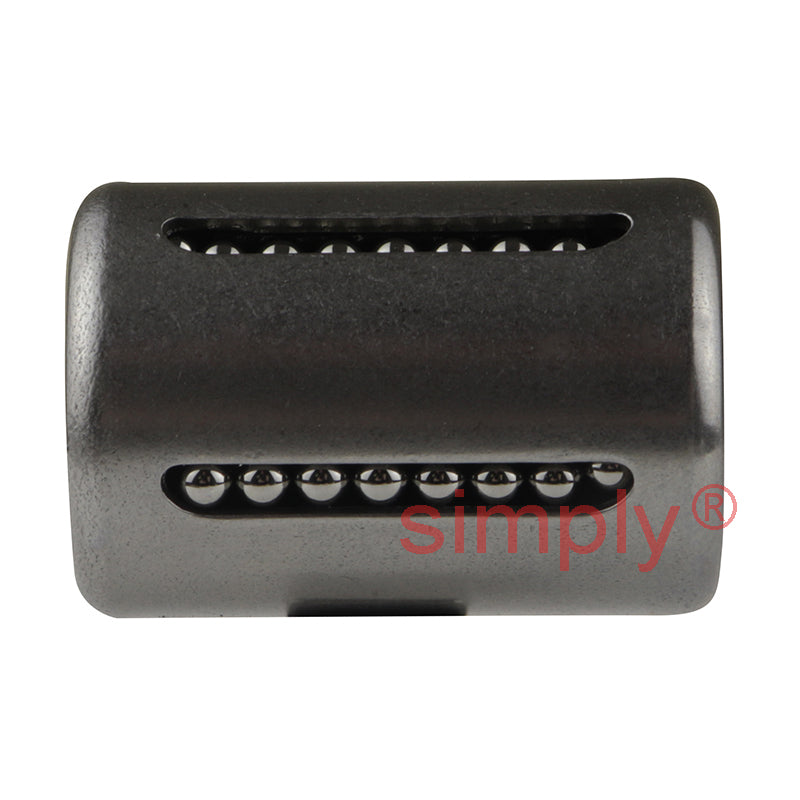

Budget KH12 Relubricatable Closed Linear Ball Bushing 12x19x28mm
Budget KH12 Relubricatable Closed Linear Ball Bushing 12x19x28mm
Regular price
Rs. 1,221.30
Regular price
Sale price
Rs. 1,221.30
Taxes included.
In stock
Price Break
10+
Rs. 1,086.96
19+
Rs. 1,025.89
29+
Rs. 1,013.68
39+
Rs. 1,001.47
49+
Rs. 989.25
74+
Rs. 977.04
99+
Rs. 915.98
199+
Rs. 903.76
249+
Rs. 891.55
499+
Rs. 879.34
999+
Rs. 854.91
Description
Description
INA KH Linear Ball Bearings: These compact range linear ball bearings have a small radial design envelope and are particularly economical. The low radial section height makes them ideal for applications in which only a small amount of radial space is available. KH linear ball bearings have a closed design, making them suitable for use on shafts. The bearings are maintenance-free for many applications due to the initial greasing with a high quality grease. If necessary, they can be relubricated via the openings in the outer ring. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Economical, maintenance-free, relubricatable, suitable for applications with a small amount of available radial space.
Benefits: Economical, maintenance-free, relubricatable, suitable for applications with a small amount of available radial space.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Length:
- 28mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 19mm |
| L | 28mm |
| JL4 | 6mm |
| N2 | 2.5mm |
| Mass | 0.0185 kg |
| Basic dynamic load rating | 670 N |
| Basic static load rating C0 min | 510 N |
| Basic dynamic load rating C max | 800 N |
| Basic static load rating C0 max | 740 N |
