SKU: KFL08

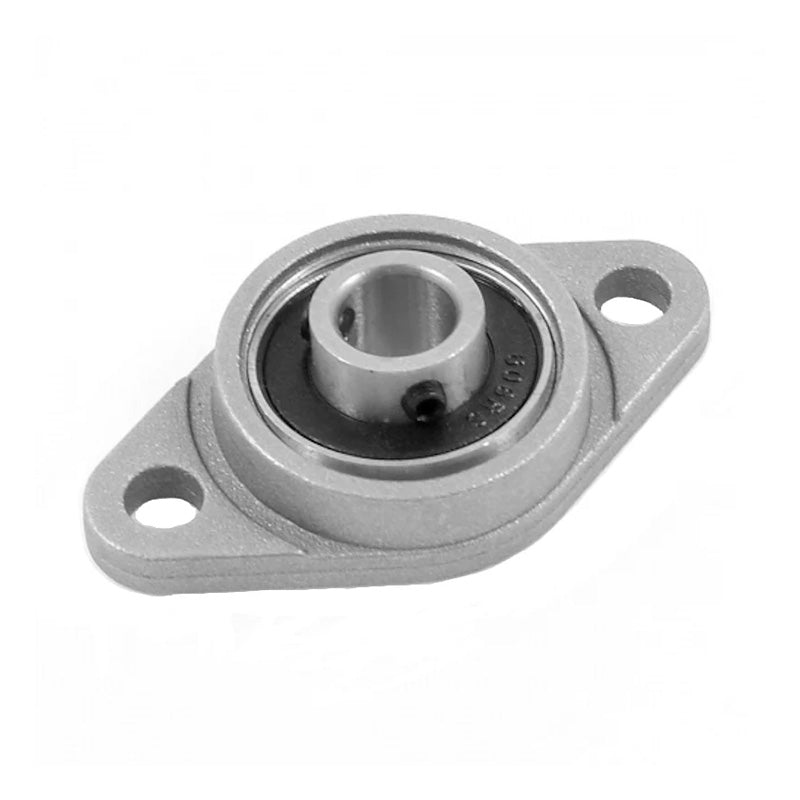

KFL08 Aluminium 2 Bolt Oval Bearing with Grub Screws 8mm Bore
KFL08 Aluminium 2 Bolt Oval Bearing with Grub Screws 8mm Bore
Regular price
Rs. 833.28
ex VAT
Regular price
Sale price
Rs. 833.28
ex VAT
In stock
Price Break
10+
Rs. 741.62
19+
Rs. 699.96
29+
Rs. 691.62
39+
Rs. 683.29
49+
Rs. 674.96
74+
Rs. 666.62
99+
Rs. 624.96
199+
Rs. 616.63
249+
Rs. 608.29
499+
Rs. 599.96
999+
Rs. 583.30
Couldn't load pickup availability
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Style:
- KFL
- Bolt Hole Centres:
- 36mm
Technical
Technical
| d | 8mm |
|---|---|
| a | 48mm |
| e | 36mm |
| g | 4mm |
| l | 9mm |
| N | 5mm |
| b | 27mm |
| n | 3mm |
| Bi | 11mm |
| z | 12.5mm |
| Recommended fixing screw | M4 |
| Weight | 0.02575 kg |
