SKU: KFL005

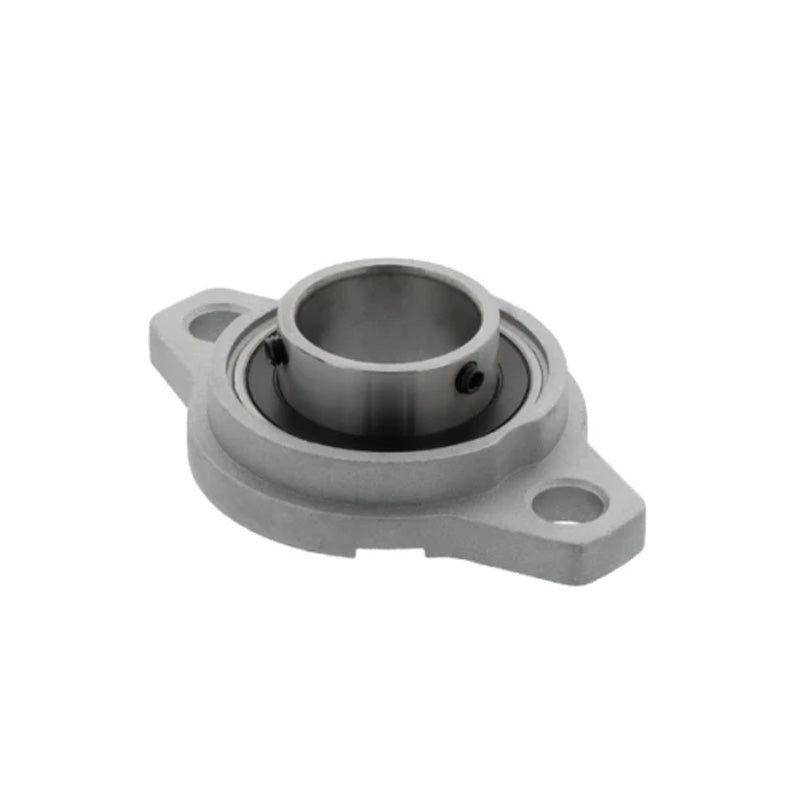

KFL005 Aluminium 2 Bolt Oval Bearing with Grub Screws 25mm Bore
KFL005 Aluminium 2 Bolt Oval Bearing with Grub Screws 25mm Bore
Regular price
Rs. 1,319.87
Regular price
Sale price
Rs. 1,319.87
Taxes included.
In stock
Price Break
10+
Rs. 1,174.68
19+
Rs. 1,108.69
29+
Rs. 1,095.49
39+
Rs. 1,082.29
49+
Rs. 1,069.09
74+
Rs. 1,055.90
99+
Rs. 989.90
199+
Rs. 976.70
249+
Rs. 963.51
499+
Rs. 950.31
999+
Rs. 923.91
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- KFL
- Bolt Hole Centres:
- 75mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 95mm |
| e | 75mm |
| g | 8mm |
| l | 16mm |
| N | 10mm |
| b | 60mm |
| n | 6mm |
| Bi | 22.5mm |
| t | 27.5mm |
| z | 24.5mm |
| Recommended fixing screw | M8 |
| Weight | 0.27 kg |
| Dynamic load | 10094 N ~ 1029.302 kgf |
| Static load | 5831 N ~ 594.597 kgf |
