SKU: KBS50-INA

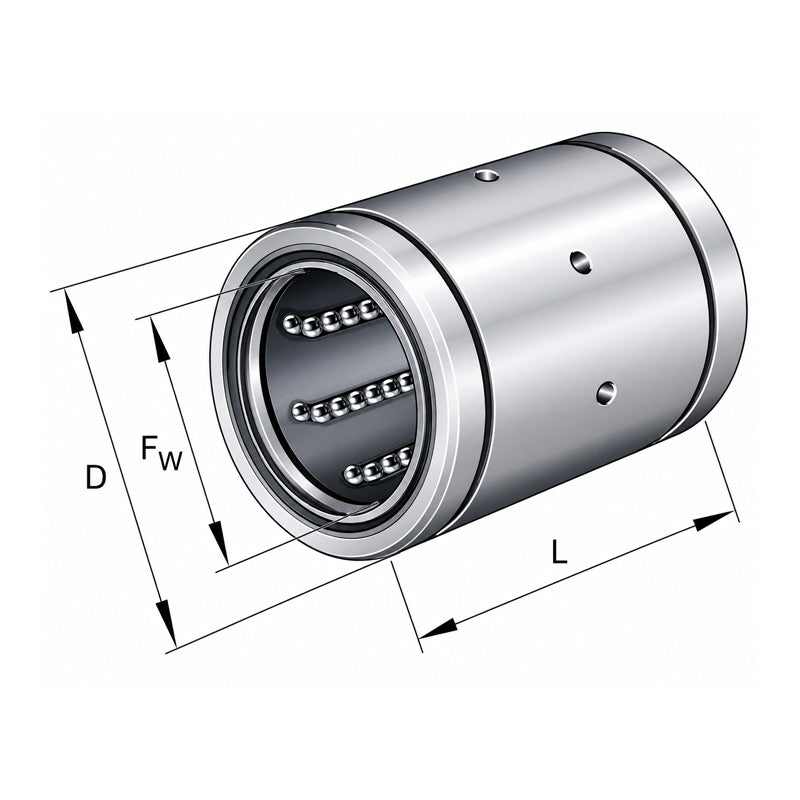

INA KBS50 Linear Ball Bushing 50x75x100mm
INA KBS50 Linear Ball Bushing 50x75x100mm
Regular price
Rs. 25,092.96
Regular price
Sale price
Rs. 25,092.96
Taxes included.
In stock
Price Break
10+
Rs. 22,332.73
19+
Rs. 21,078.09
29+
Rs. 20,827.16
39+
Rs. 20,576.23
49+
Rs. 20,325.30
74+
Rs. 20,074.37
99+
Rs. 18,819.72
199+
Rs. 18,568.79
249+
Rs. 18,317.86
499+
Rs. 18,066.93
999+
Rs. 17,565.07
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 100mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 75mm |
| L | 100mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.65mm |
| DN | 72mm |
| L2 | 77.3mm |
| Mass | 1 kg |
| Basic dynamic load rating C min | 8700 N |
| Basic static load rating C0 min | 6300 N |
| Basic dynamic load rating C max | 9200 N |
| Basic static load rating C0 max | 8000 N |
