SKU: KBS25-PP-INA

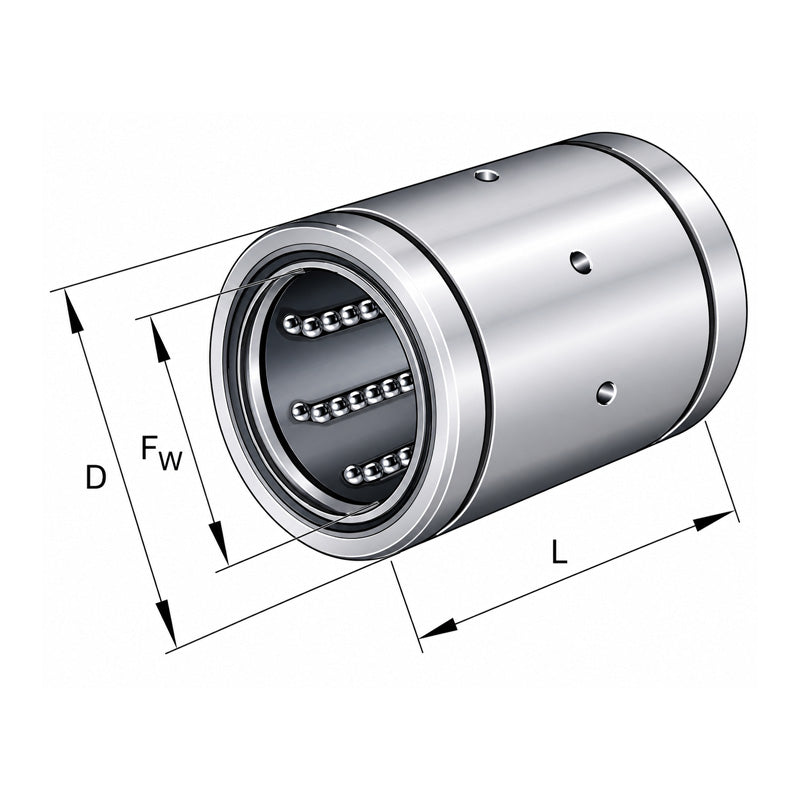

INA KBS25PP Linear Ball Bushing with Contact Seals 25x40x58mm
INA KBS25PP Linear Ball Bushing with Contact Seals 25x40x58mm
Regular price
Rs. 11,158.12
Regular price
Sale price
Rs. 11,158.12
Taxes included.
In stock
Price Break
10+
Rs. 9,930.73
19+
Rs. 9,372.82
29+
Rs. 9,261.24
39+
Rs. 9,149.66
49+
Rs. 9,038.08
74+
Rs. 8,926.50
99+
Rs. 8,368.59
199+
Rs. 8,257.01
249+
Rs. 8,145.43
499+
Rs. 8,033.85
999+
Rs. 7,810.68
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 37.5mm |
| L2 | 43.7mm |
| Mass | 0.19 kg |
| Basic dynamic load rating C min | 2800 N |
| Basic static load rating C0 min | 2220 N |
| Basic dynamic load rating C max | 2950 N |
| Basic static load rating C0 max | 2850 N |
