SKU: KBS16-INA

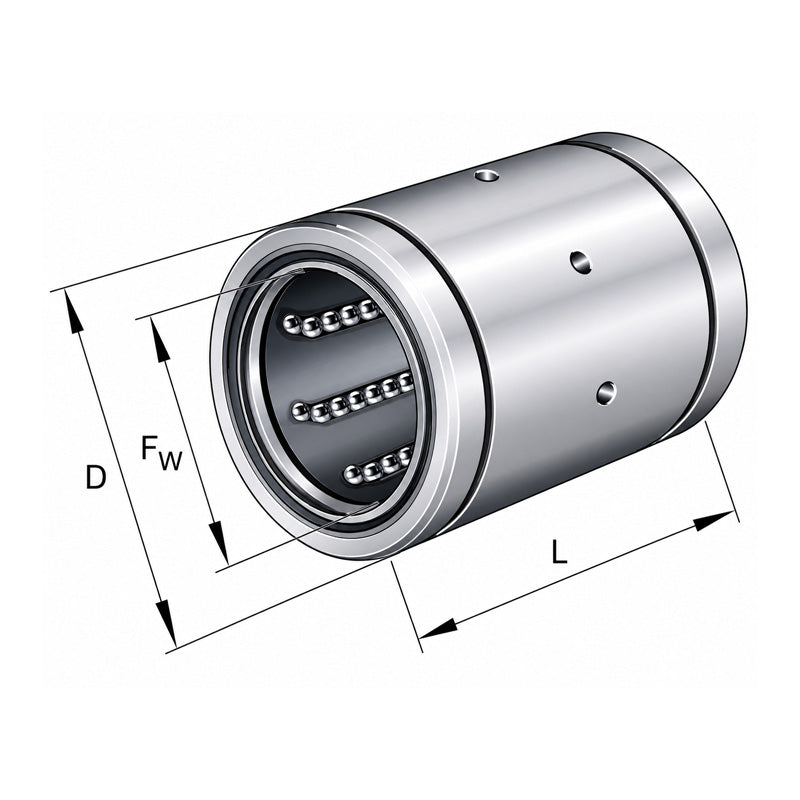

INA KBS16 Linear Ball Bushing 16x26x36mm
INA KBS16 Linear Ball Bushing 16x26x36mm
Regular price
Rs. 6,977.02
Regular price
Sale price
Rs. 6,977.02
Taxes included.
In stock
Price Break
10+
Rs. 6,209.55
19+
Rs. 5,860.70
29+
Rs. 5,790.93
39+
Rs. 5,721.16
49+
Rs. 5,651.39
74+
Rs. 5,581.62
99+
Rs. 5,232.77
199+
Rs. 5,162.99
249+
Rs. 5,093.22
499+
Rs. 5,023.45
999+
Rs. 4,883.91
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 26mm
- Width:
- 36mm

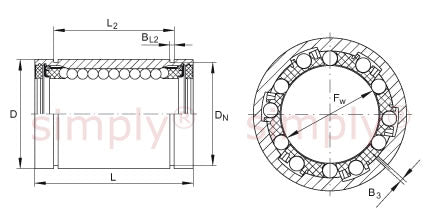

Technical
Technical
| Fw | 16mm |
|---|---|
| D | 26mm |
| L | 36mm |
| Numer of rows of balls | 5 |
| B3 | 1mm |
| BL2 | 1.3mm |
| DN | 24.9mm |
| L2 | 24.6mm |
| Mass | 0.05 kg |
| Basic dynamic load rating C min | 710 N |
| Basic static load rating C0 min | 530 N |
| Basic dynamic load rating C max | 840 N |
| Basic static load rating C0 max | 780 N |
