SKU: KBLI-16

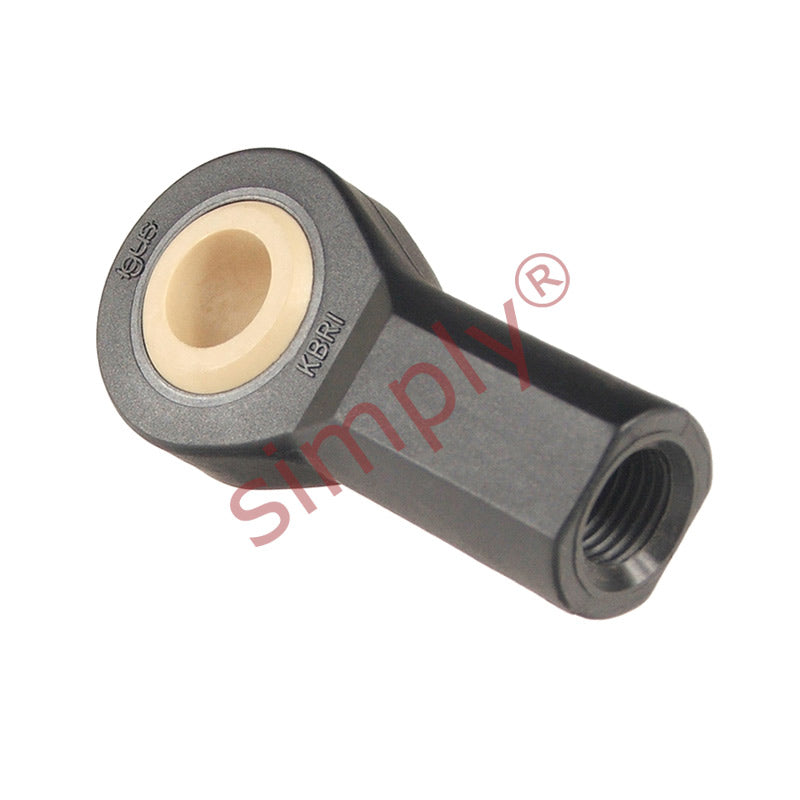

igubal KBLI16 Left Hand Female Plastic Rod End 1 inch Bore 1-12 Thread - Allow 2-3 Days
igubal KBLI16 Left Hand Female Plastic Rod End 1 inch Bore 1-12 Thread - Allow 2-3 Days
Regular price
Rs. 4,047.95
Regular price
Sale price
Rs. 4,047.95
Taxes included.
In stock
Price Break
10+
Rs. 3,602.68
19+
Rs. 3,400.28
29+
Rs. 3,359.80
39+
Rs. 3,319.32
49+
Rs. 3,278.84
74+
Rs. 3,238.36
99+
Rs. 3,035.96
199+
Rs. 2,995.48
249+
Rs. 2,955.00
499+
Rs. 2,914.52
999+
Rs. 2,833.57
Description
Description
IGUS igubal® KBLI imperial series left hand female thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals.
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- 1-12
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 25.4mm = 1 inch
Technical
Technical
| d1 | 1 inch |
|---|---|
| d2 | 2.75 inch |
| d3 | 1-12 inch |
| d4 | 1.625 inch |
| C1 | 1 inch |
| B | 1.375 inch |
| h1 | 4.125 inch |
| l3 | 2.125 inch |
| l4 | 5.5 inch |
| W | 1.5 inch |
| Max pivot angle | 20° |
| Max static tensile strength (short term) | 6000 N |
| Max static tensile strength (long term) | 3000 N |
| Max radial load (short term) | 2600 N |
| Max radial load (long term) | 1300 N |
| Min thread depth | 1.488 inch |
| Max torque outside thread | 46 Nm |
| Max torque through ball | 85 Nm |
| Weight | 197.5 g |
