SKU: KB20-INA

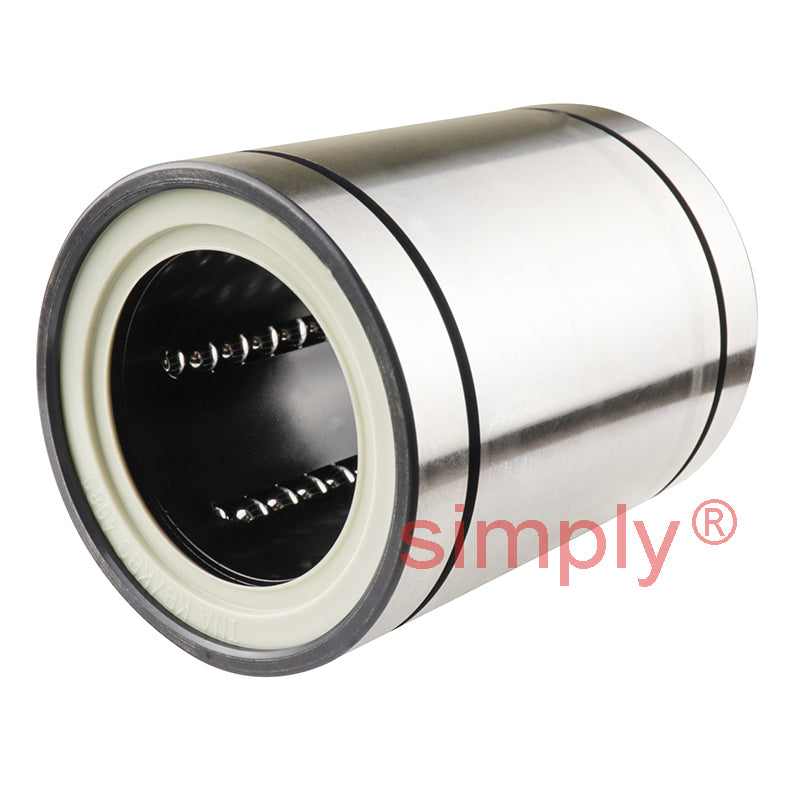

INA KB20 Closed Linear Ball Bushing with Gap Seals 20x32x45mm
INA KB20 Closed Linear Ball Bushing with Gap Seals 20x32x45mm
Regular price
Rs. 7,636.32
Regular price
Sale price
Rs. 7,636.32
Taxes included.
In stock
Price Break
10+
Rs. 6,796.32
19+
Rs. 6,414.51
29+
Rs. 6,338.15
39+
Rs. 6,261.78
49+
Rs. 6,185.42
74+
Rs. 6,109.06
99+
Rs. 5,727.24
199+
Rs. 5,650.88
249+
Rs. 5,574.51
499+
Rs. 5,498.15
999+
Rs. 5,345.42
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 45mm
Technical
Technical

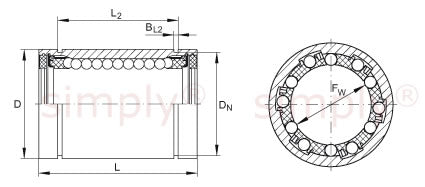

| Fw | 20mm |
|---|---|
| D | 32mm |
| L | 45mm |
| Numer of rows of balls | 6 |
| BL2 | 1.6mm |
| DN | 30.3mm |
| L2 | 31.2mm |
| Mass | 0.09 kg |
| Basic dynamic load rating C min | 1570 N |
| Basic static load rating C0 min | 1230 N |
| Basic dynamic load rating C max | 1660 N |
| Basic static load rating C0 max | 1570 N |
