SKU: K8x11x13TN-EU

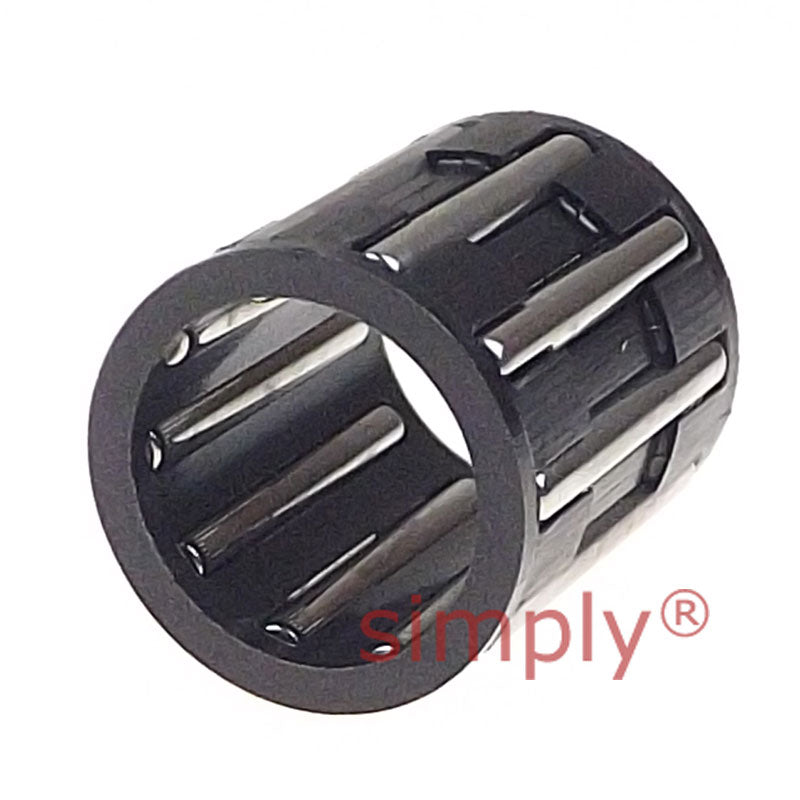

K8x11x13TN Budget Needle Roller Cage Assembly 8x11x13mm
K8x11x13TN Budget Needle Roller Cage Assembly 8x11x13mm
Regular price
Rs. 449.35
Regular price
Sale price
Rs. 449.35
Taxes included.
Equivalent to: KT81113
In stock
Price Break
10+
Rs. 399.92
19+
Rs. 377.45
29+
Rs. 372.96
39+
Rs. 368.47
49+
Rs. 363.97
74+
Rs. 359.48
99+
Rs. 337.01
199+
Rs. 332.52
249+
Rs. 328.03
499+
Rs. 323.53
999+
Rs. 314.55
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT81113
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 11mm
- Width:
- 13mm
Technical
Technical
| Fw | 8mm |
|---|---|
| Ew | 11mm |
| U | 13mm |
| Dynamic load C | 5010 N |
| Static load Co | 5850 N |
| Fatigue load limit Pu | 670 N |
| Speed in grease | 20000 rpm |
| Speed in oil | 32000 rpm |
| Weight | 1.7 g |
