SKU: K89322L1-NTN

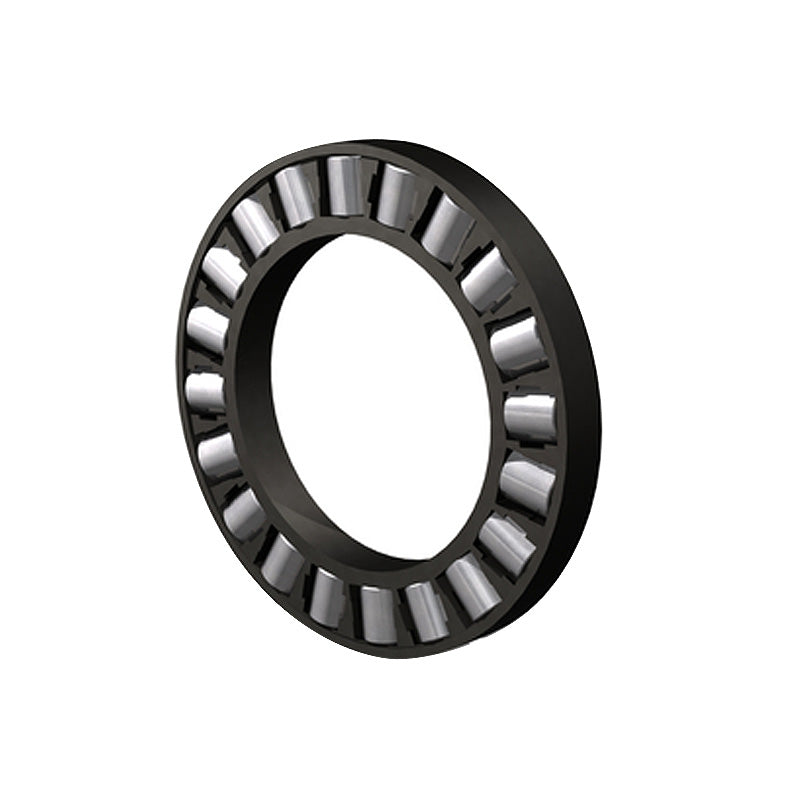

NTN K89322L1 Needle Roller Cage Only 110x190x15mm - Allow 2-3 Days
NTN K89322L1 Needle Roller Cage Only 110x190x15mm - Allow 2-3 Days
Regular price
Rs. 31,217.38
Regular price
Sale price
Rs. 31,217.38
Taxes included.
In stock
Price Break
5+
Rs. 30,905.21
10+
Rs. 29,656.51
20+
Rs. 29,032.16
50+
Rs. 28,095.64
100+
Rs. 27,471.29
500+
Rs. 25,910.43
1000+
Rs. 21,852.17
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 190mm
- Width:
- 15mm
Technical
Technical
| Dc1 - Inside diameter | 110mm |
|---|---|
| Dc - Outside diameter | 190mm |
| Dw - Roller Width | 15mm |
| WS inner ring reference | WS89322 |
| GS outer ring reference | GS89322 |
| Ea - Rollers reference outer diameter | 183mm |
| Eb - Rollers reference inner diameter | 122.5mm |
| Ca - Dynamic axial load rating | 430 kN |
| C0a - Static axial load rating | 1770 kN |
| Grease lubrication limit speed | 400 tr/min |
| Oil lubrication limit speed | 1600 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
