SKU: K81206T2-NTN

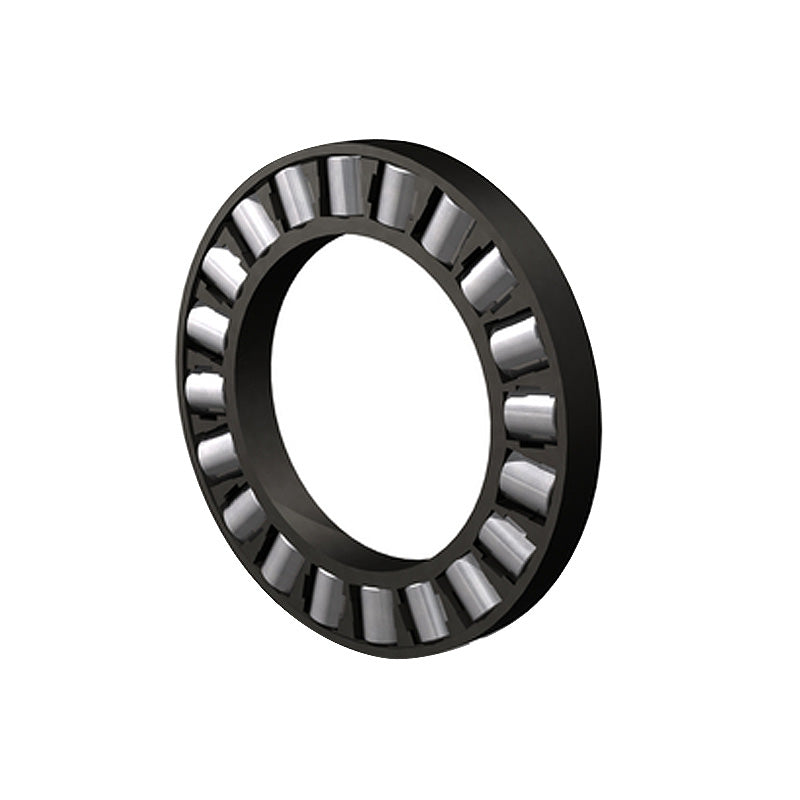

NTN K81206T2 Needle Roller Cage Only 30x52x7.5mm - Allow 2-3 Days
NTN K81206T2 Needle Roller Cage Only 30x52x7.5mm - Allow 2-3 Days
Regular price
Rs. 2,267.21
Regular price
Sale price
Rs. 2,267.21
Taxes included.
In stock
Price Break
5+
Rs. 2,244.54
10+
Rs. 2,153.85
20+
Rs. 2,108.51
50+
Rs. 2,040.49
100+
Rs. 1,995.14
500+
Rs. 1,881.78
1000+
Rs. 1,587.05
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 7.5mm
Technical
Technical
| Dc1 - Inside diameter | 30mm |
|---|---|
| Dc - Outside diameter | 52mm |
| Dw - Roller Width | 7.5mm |
| WS inner ring reference | WS81206 |
| GS outer ring reference | GS81206 |
| Ea - Rollers reference outer diameter | 49mm |
| Eb - Rollers reference inner diameter | 32.8mm |
| Ca - Dynamic axial load rating | 53 kN |
| C0a - Static axial load rating | 129 kN |
| Cua - Limit axial load rating | 15.7 kN |
| Grease lubrication limit speed | 1500 tr/min |
| Oil lubrication limit speed | 6000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
