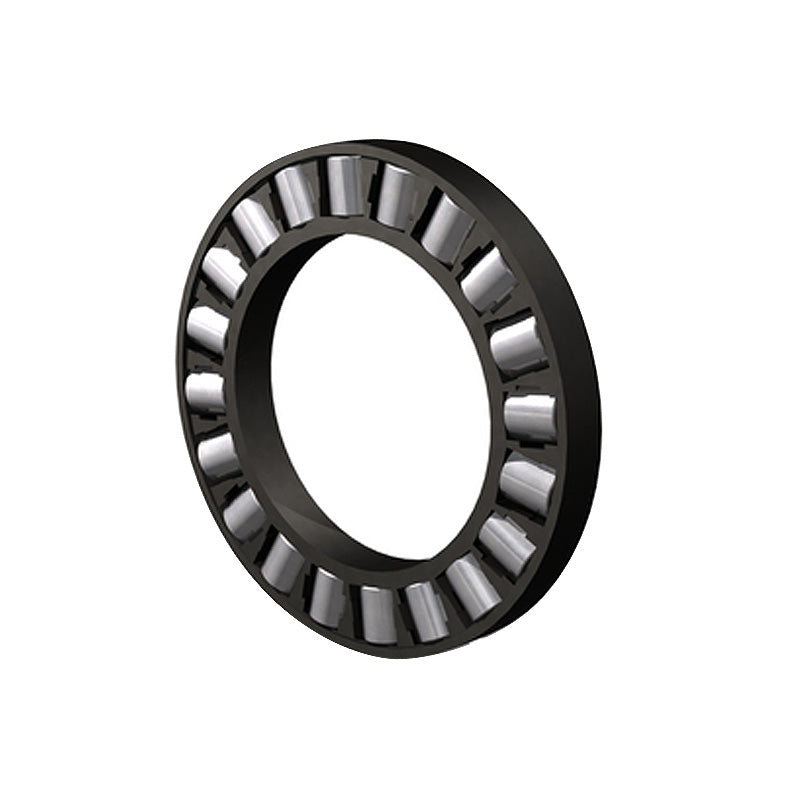

NTN K81117T2 Needle Roller Cage Only 85x110x7.5mm - Allow 2-3 Days
NTN K81117T2 Needle Roller Cage Only 85x110x7.5mm - Allow 2-3 Days
Regular price
Rs. 5,671.23
Regular price
Sale price
Rs. 5,671.23
Taxes included.
In stock
Price Break
5+
Rs. 5,614.52
10+
Rs. 5,387.67
20+
Rs. 5,274.24
50+
Rs. 5,104.11
100+
Rs. 4,990.68
500+
Rs. 4,707.12
1000+
Rs. 3,969.86
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 7.5mm
Technical
Technical
| Dc1 - Inside diameter | 85mm |
|---|---|
| Dc - Outside diameter | 110mm |
| Dw - Roller Width | 7.5mm |
| WS inner ring reference | WS81117 |
| GS outer ring reference | GS81117 |
| Ea - Rollers reference outer diameter | 105.3mm |
| Eb - Rollers reference inner diameter | 88.7mm |
| Ca - Dynamic axial load rating | 83 kN |
| C0a - Static axial load rating | 300 kN |
| Cua - Limit axial load rating | 36.5 kN |
| Grease lubrication limit speed | 630 tr/min |
| Oil lubrication limit speed | 2500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
