SKU: K81104T2-NTN

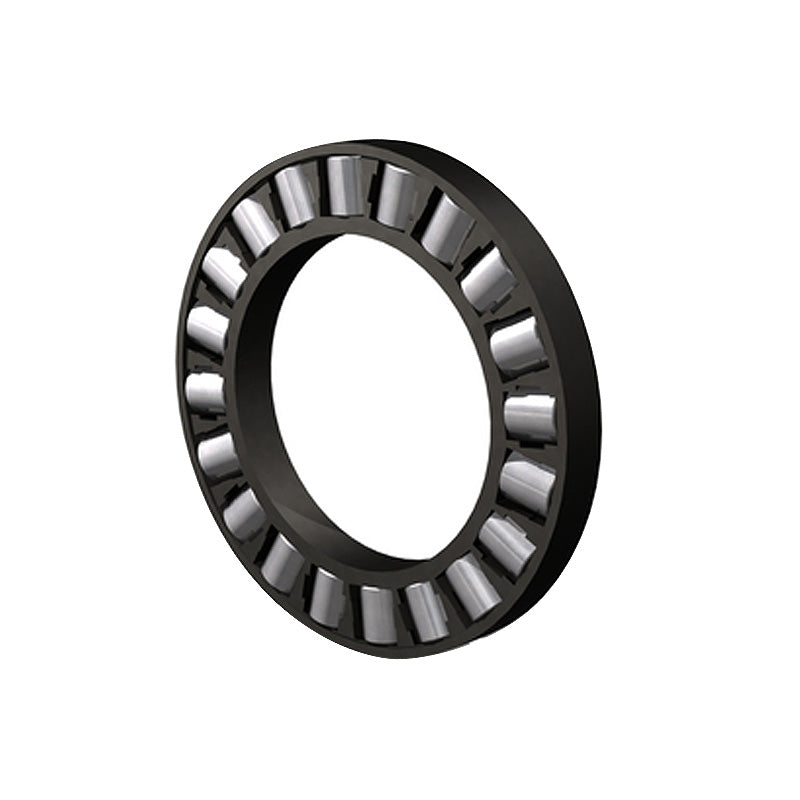

NTN K81104T2 Needle Roller Cage Only 20x35x4.5mm - Allow 2-3 Days
NTN K81104T2 Needle Roller Cage Only 20x35x4.5mm - Allow 2-3 Days
Regular price
Rs. 1,414.37
ex VAT
Regular price
Sale price
Rs. 1,414.37
ex VAT
In stock
Price Break
5+
Rs. 1,400.23
10+
Rs. 1,343.65
20+
Rs. 1,315.36
50+
Rs. 1,272.93
100+
Rs. 1,244.65
500+
Rs. 1,173.93
1000+
Rs. 990.06
Couldn't load pickup availability
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 4.5mm
Technical
Technical
| Dc1 - Inside diameter | 20mm |
|---|---|
| Dc - Outside diameter | 35mm |
| Dw - Roller Width | 4.5mm |
| WS inner ring reference | WS81104 |
| GS outer ring reference | GS81104 |
| Ea - Rollers reference outer diameter | 32.3mm |
| Eb - Rollers reference inner diameter | 22.4mm |
| Ca - Dynamic axial load rating | 20.2 kN |
| C0a - Static axial load rating | 46.5 kN |
| Cua - Limit axial load rating | 5.65 kN |
| Grease lubrication limit speed | 2100 tr/min |
| Oil lubrication limit speed | 8500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
