SKU: K38x46x20-MB

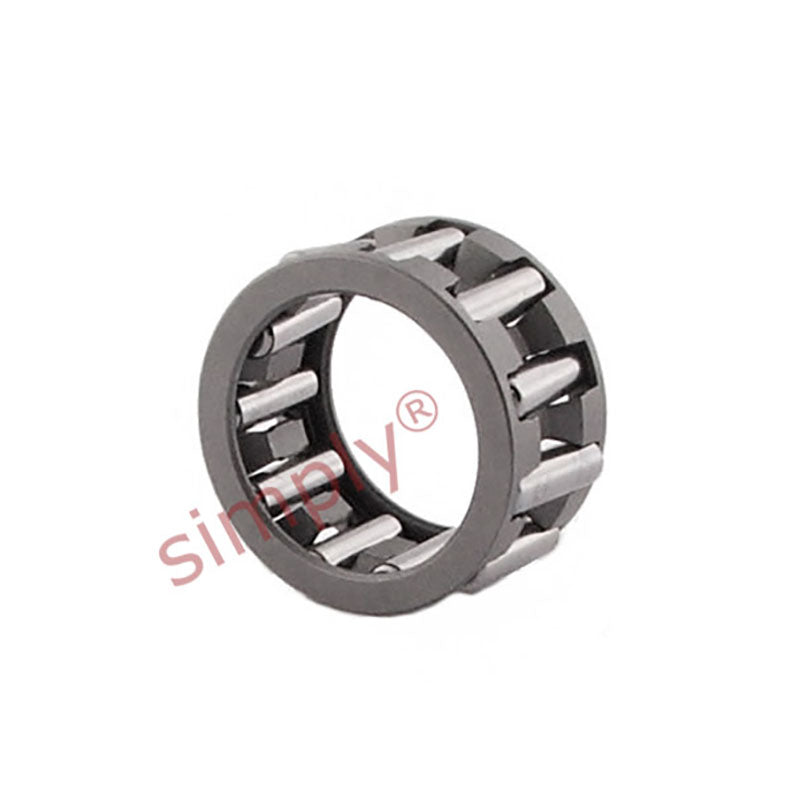

Major Brand K38x46x20 Needle Roller Cage Assembly 38x46x20mm
Major Brand K38x46x20 Needle Roller Cage Assembly 38x46x20mm
Regular price
Rs. 1,172.65
Regular price
Sale price
Rs. 1,172.65
Taxes included.
Equivalent to: KT384620
In stock
Price Break
10+
Rs. 1,043.66
19+
Rs. 985.03
29+
Rs. 973.30
39+
Rs. 961.57
49+
Rs. 949.85
74+
Rs. 938.12
99+
Rs. 879.49
199+
Rs. 867.76
249+
Rs. 856.03
499+
Rs. 844.31
999+
Rs. 820.86
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT384620
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 46mm
- Width:
- 20mm
Technical
Technical
| Fw | 38mm |
|---|---|
| Ew | 46mm |
| U | 20mm |
| Dynamic load | 34100 N |
| Static load | 57000 N |
| Fatigue load limit Pu | 6950 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| Weight | 47 g |
