SKU: K32x39x16-MB

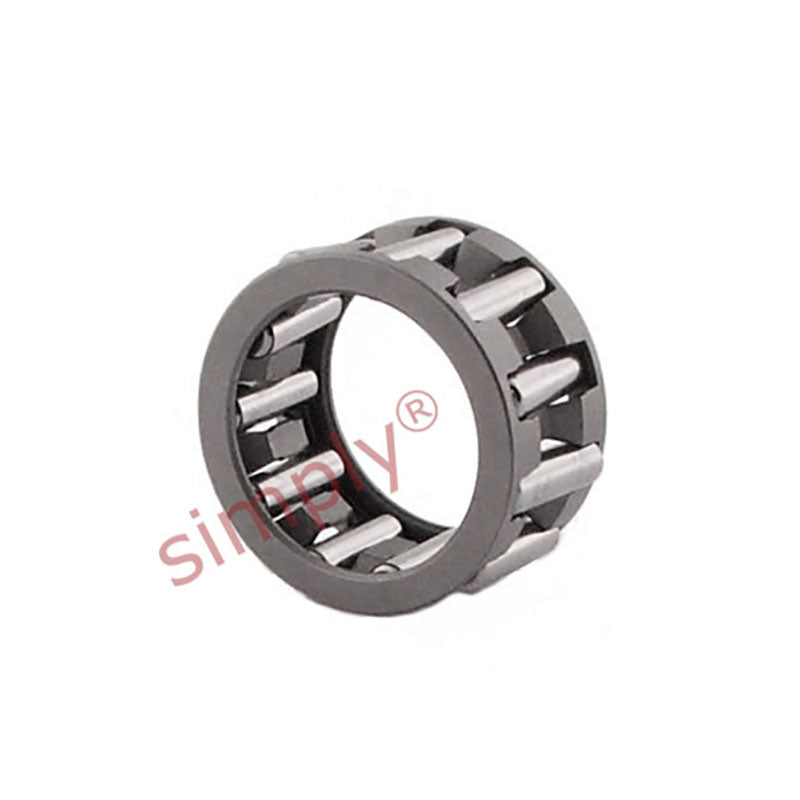

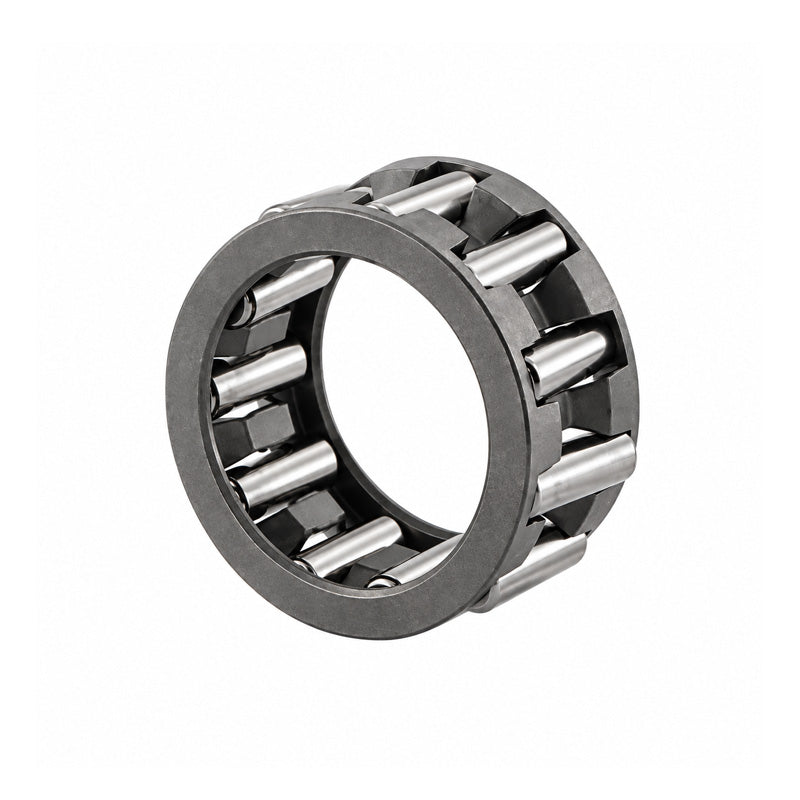

Major Brand K32x39x16 Needle Roller Cage Assembly 32x39x16mm
Major Brand K32x39x16 Needle Roller Cage Assembly 32x39x16mm
Regular price
Rs. 1,286.59
Regular price
Sale price
Rs. 1,286.59
Taxes included.
Equivalent to: KT323916
In stock
Price Break
10+
Rs. 1,145.07
19+
Rs. 1,080.74
29+
Rs. 1,067.87
39+
Rs. 1,055.00
49+
Rs. 1,042.14
74+
Rs. 1,029.27
99+
Rs. 964.94
199+
Rs. 952.08
249+
Rs. 939.21
499+
Rs. 926.34
999+
Rs. 900.61
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT323916
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 39mm
- Width:
- 16mm
Technical
Technical
| Fw | 32mm |
|---|---|
| Ew | 39mm |
| U | 16mm |
| Dynamic load | 22900 N |
| Static load | 35500 N |
| Fatigue load limit Pu | 4250 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| Weight | 37 g |
