SKU: K30X37X20-INA

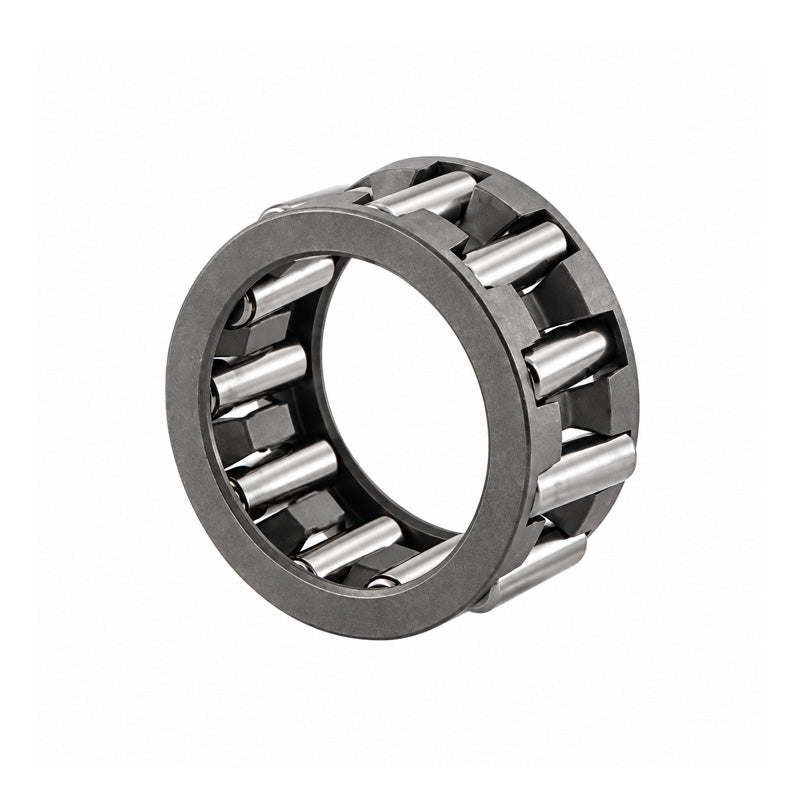

INA K30x37x20 Needle Roller Cage Assembly 30x37x20mm
INA K30x37x20 Needle Roller Cage Assembly 30x37x20mm
Equivalent to: K30X37X20
Out of stock
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: K30X37X20
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 20mm
Technical
Technical
| Fw | 30mm |
|---|---|
| Ew | 37mm |
| U | 20mm |
| Dynamic load | 25100 N |
| Static load | 39000 N |
| Fatigue load limit Pu | 4650 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| Seal | G/SD30x37x4 |
| Weight | 30 g |
