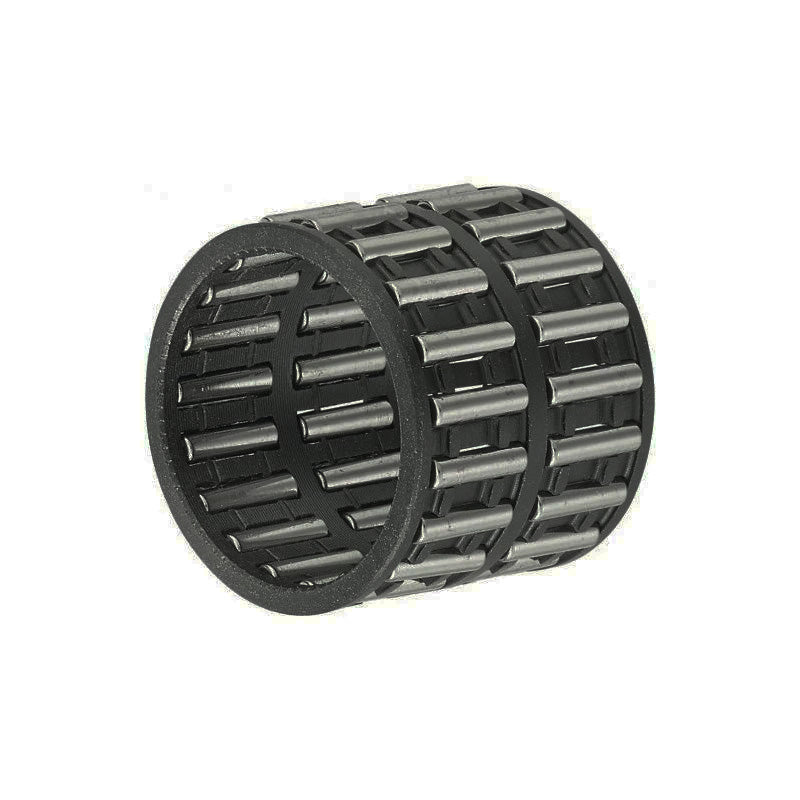

NTN K24X30X31ZW Double Row Needle Roller and Cage Assembly 24x30x31mm - Allow 2-3 Days
NTN K24X30X31ZW Double Row Needle Roller and Cage Assembly 24x30x31mm - Allow 2-3 Days
Regular price
Rs. 2,267.21
Regular price
Sale price
Rs. 2,267.21
Taxes included.
In stock
Price Break
5+
Rs. 2,244.54
10+
Rs. 2,153.85
20+
Rs. 2,108.51
50+
Rs. 2,040.49
100+
Rs. 1,995.14
500+
Rs. 1,881.78
1000+
Rs. 1,587.05
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 24mm
- Outside Diameter:
- 30mm
- Width:
- 31mm
Technical
Technical

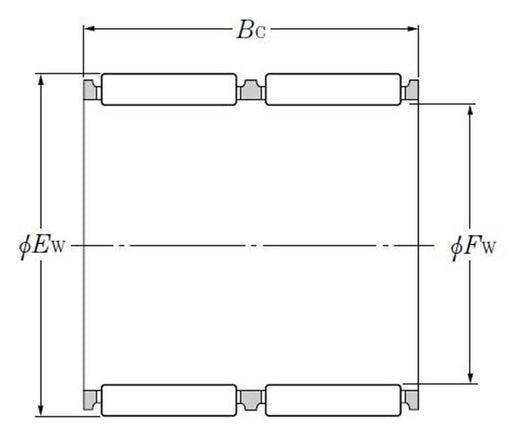

| Fw - Inside diameter | 24mm |
|---|---|
| Ew - Outside diameter | 30mm |
| Bc - Cage width | 31mm |
| Cr - Dynamic load rating | 27.9 kN |
| C0r - Static load rating | 43 kN |
| N - Grease lubrication limit speed | 11000 tr/min |
| N - Oil lubrication limit speed | 17000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
