SKU: K24x30x31ZW-INA

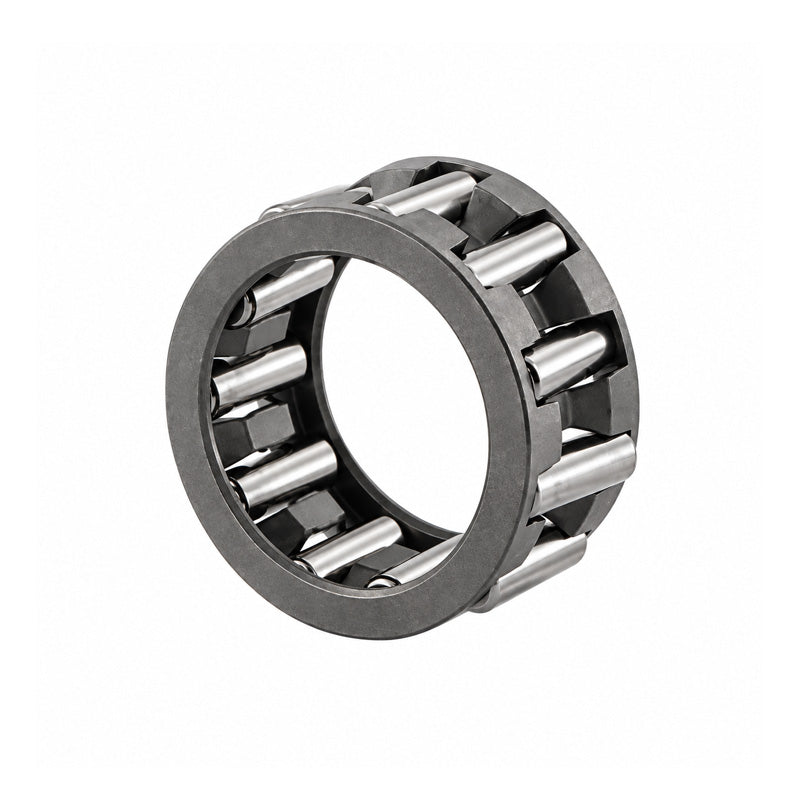

INA K24x30x31ZW Needle Roller Cage Assembly 24x30x31mm
INA K24x30x31ZW Needle Roller Cage Assembly 24x30x31mm
Regular price
Rs. 4,573.17
ex VAT
Regular price
Sale price
Rs. 4,573.17
ex VAT
Equivalent to: K24x30x31ZW
In stock
Price Break
5+
Rs. 4,527.44
10+
Rs. 4,344.51
20+
Rs. 4,253.05
50+
Rs. 4,115.85
100+
Rs. 4,024.39
500+
Rs. 3,795.73
1000+
Rs. 3,201.22
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: K24x30x31ZW
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 24mm
- Outside Diameter:
- 30mm
- Width:
- 31mm
Technical
Technical
| Fw | 24mm |
|---|---|
| Ew | 30mm |
| U | 31mm |
| Dynamic load | 26400 N |
| Static load | 43000 N |
| Fatigue load limit Pu | 5300 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| Weight | 32 g |
