SKU: K22x26x17-MB

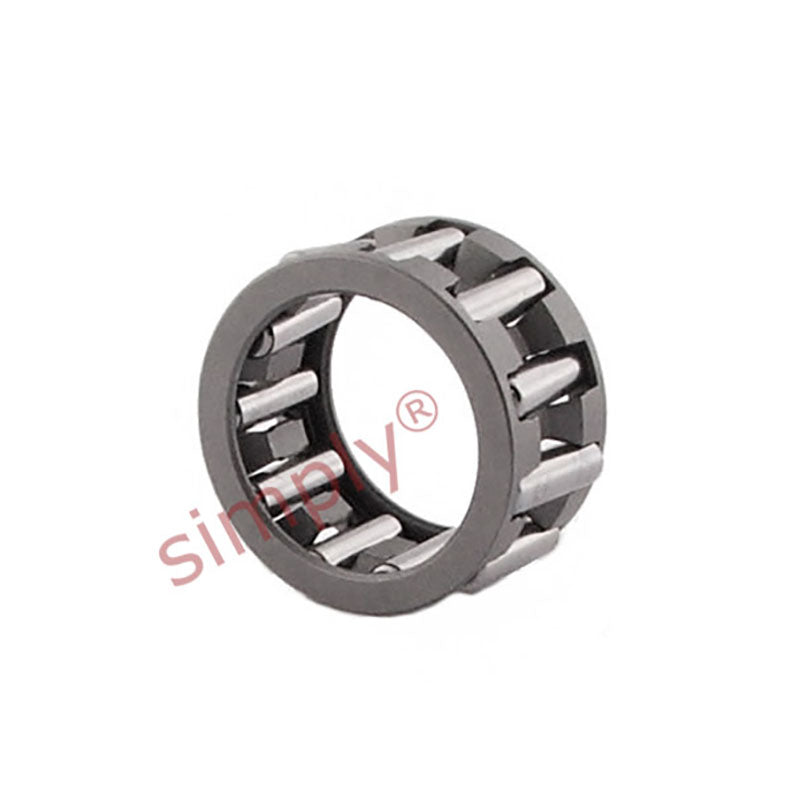

Major Brand K22x26x17 Needle Roller Cage Assembly 22x26x17mm
Major Brand K22x26x17 Needle Roller Cage Assembly 22x26x17mm
Regular price
Rs. 1,698.81
Regular price
Sale price
Rs. 1,698.81
Taxes included.
Equivalent to: KT222617
In stock
Price Break
10+
Rs. 1,511.94
19+
Rs. 1,427.00
29+
Rs. 1,410.01
39+
Rs. 1,393.02
49+
Rs. 1,376.04
74+
Rs. 1,359.05
99+
Rs. 1,274.11
199+
Rs. 1,257.12
249+
Rs. 1,240.13
499+
Rs. 1,223.14
999+
Rs. 1,189.17
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT222617
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 26mm
- Width:
- 17mm
Technical
Technical
| Fw | 22mm |
|---|---|
| Ew | 26mm |
| U | 17mm |
| Dynamic load | 13200 N |
| Static load | 22800 N |
| Fatigue load limit Pu | 2700 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| Weight | 12 g |
