SKU: K20x28x25-MB

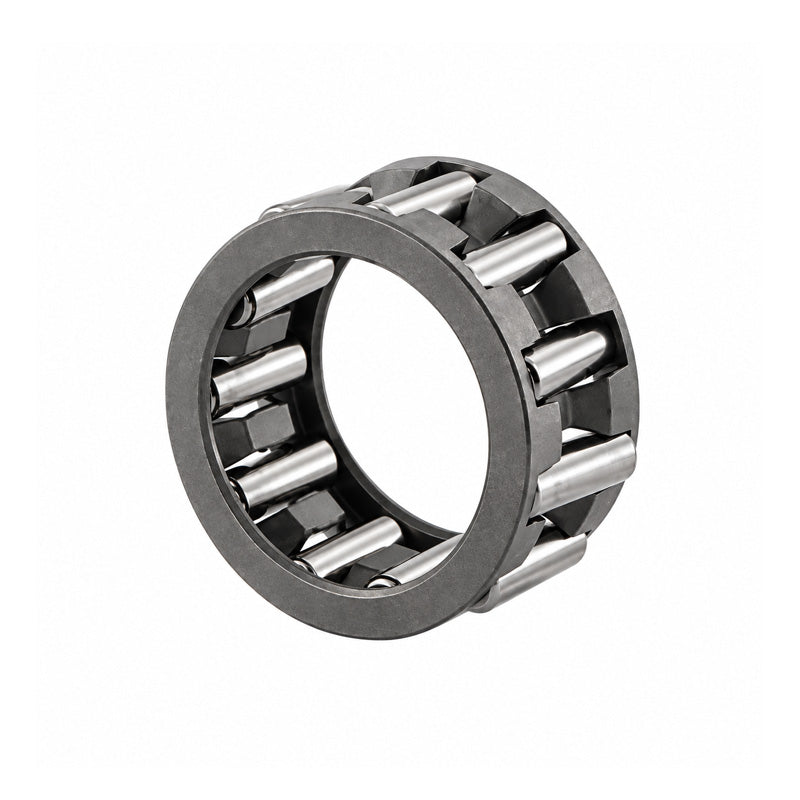

Major Brand K20x28x25 Needle Roller Cage Assembly 20x28x25mm
Major Brand K20x28x25 Needle Roller Cage Assembly 20x28x25mm
Regular price
Rs. 1,008.04
ex VAT
Regular price
Sale price
Rs. 1,008.04
ex VAT
Equivalent to: KT202825
In stock
Price Break
10+
Rs. 897.16
19+
Rs. 846.75
29+
Rs. 836.67
39+
Rs. 826.59
49+
Rs. 816.51
74+
Rs. 806.43
99+
Rs. 756.03
199+
Rs. 745.95
249+
Rs. 735.87
499+
Rs. 725.79
999+
Rs. 705.63
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT202825
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Width:
- 25mm
Technical
Technical
| Fw | 20mm |
|---|---|
| Ew | 28mm |
| U | 25mm |
| Dynamic load | 30500 N |
| Static load | 39000 N |
| Fatigue load limit Pu | 5300 N |
| Speed in grease | 10800 rpm |
| Speed in oil | 20400 rpm |
| Seal | G/SD20x28x4 |
| Weight | 32 g |
