SKU: K15x19x13-MB

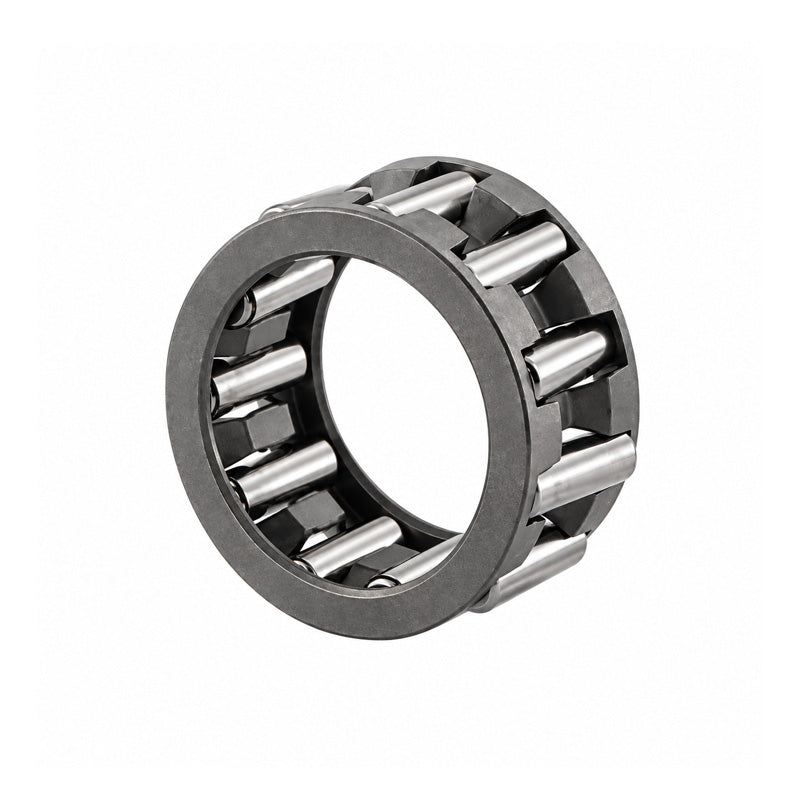

Major Brand K15x19x13 Needle Roller Cage Assembly 15x19x13mm
Major Brand K15x19x13 Needle Roller Cage Assembly 15x19x13mm
Regular price
Rs. 701.54
Regular price
Sale price
Rs. 701.54
Taxes included.
In stock
Price Break
10+
Rs. 624.37
19+
Rs. 589.29
29+
Rs. 582.28
39+
Rs. 575.26
49+
Rs. 568.25
74+
Rs. 561.23
99+
Rs. 526.16
199+
Rs. 519.14
249+
Rs. 512.12
499+
Rs. 505.11
999+
Rs. 491.08
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 19mm
- Width:
- 13mm
Technical
Technical
| Fw | 15mm |
|---|---|
| Ew | 19mm |
| U | 13mm |
| Dynamic load | 8250 N |
| Static load | 11200 N |
| Fatigue load limit Pu | 1290 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| Weight | 7 g |
