SKU: K006

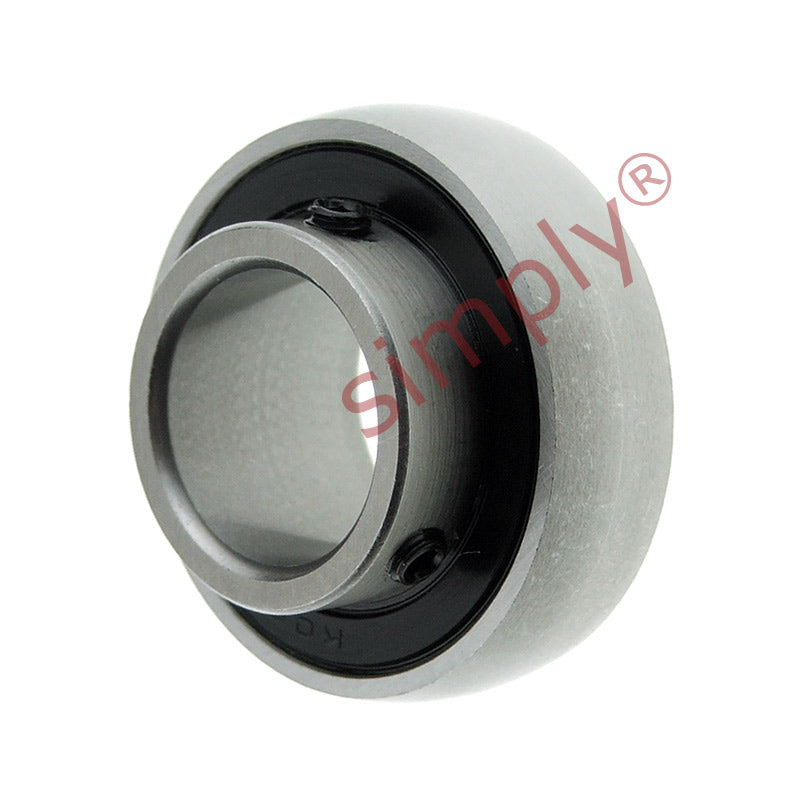

K006 Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia
K006 Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia
Regular price
Rs. 1,232.82
Regular price
Sale price
Rs. 1,232.82
Taxes included.
In stock
Price Break
10+
Rs. 1,097.21
19+
Rs. 1,035.57
29+
Rs. 1,023.24
39+
Rs. 1,010.91
49+
Rs. 998.58
74+
Rs. 986.26
99+
Rs. 924.62
199+
Rs. 912.29
249+
Rs. 899.96
499+
Rs. 887.63
999+
Rs. 862.97
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Style:
- K
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 55mm |
| Bi | 24.5mm |
| Be | 13mm |
| r | 1.5mm |
| n | 6.5mm |
| G | 5mm |
| W | 38mm |
| Grub screw | M5X0.5 |
| Dynamic load | 13230N ~ 1349.085 kgf |
| Static load | 8281N ~ 844.427 kgf |
| Weight | 0.16 kg |
