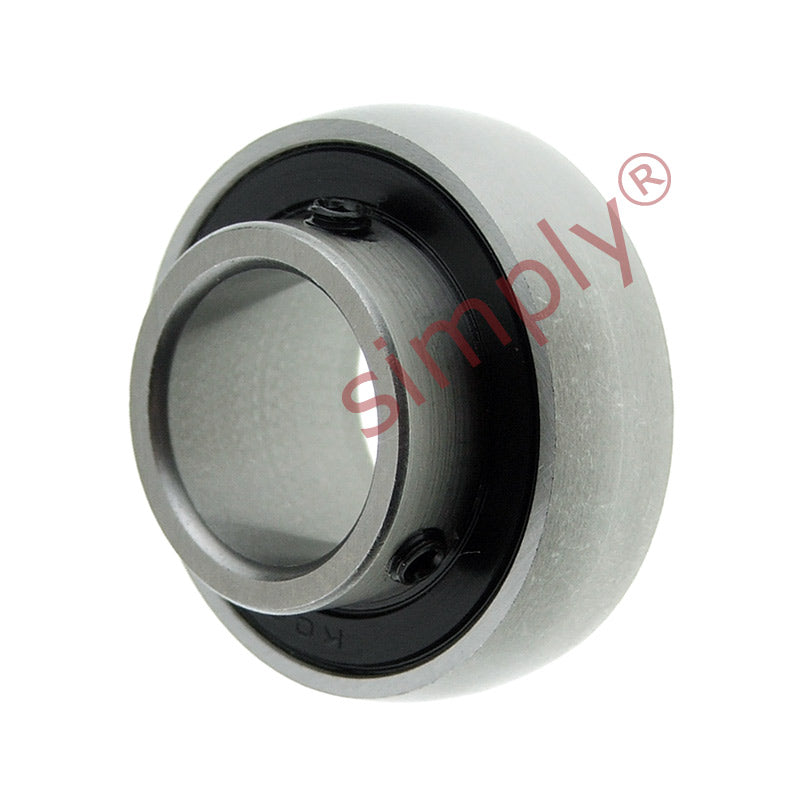

• K003 Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia
1 1

SKU: K003

K003 Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia

K003 Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia
Rs. 999.83
Rs. 999.83
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 889.85
19+ Rs. 839.86
29+ Rs. 829.86
39+ Rs. 819.86
49+ Rs. 809.86
74+ Rs. 799.86
99+ Rs. 749.87
199+ Rs. 739.87
249+ Rs. 729.88
499+ Rs. 719.88
999+ Rs. 699.88
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers..
Benefits: Cost effective bearing insert, grub screw fixing, flat back design

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Outside Diameter:
35mm
Style:
K
Technical
Inside Diameter d 17mm
Outside Diameter D 35mm
Bi 17.5mm
Be 10mm
r 0.5mm
n 5mm
G 3.5mm
W 23.1mm
Grub screw M4X0.5
Dynamic load 5978N ~ 609.586 kgf
Static load 3283N ~ 334.773 kgf
Weight 0.06 kg
