SKU: K002

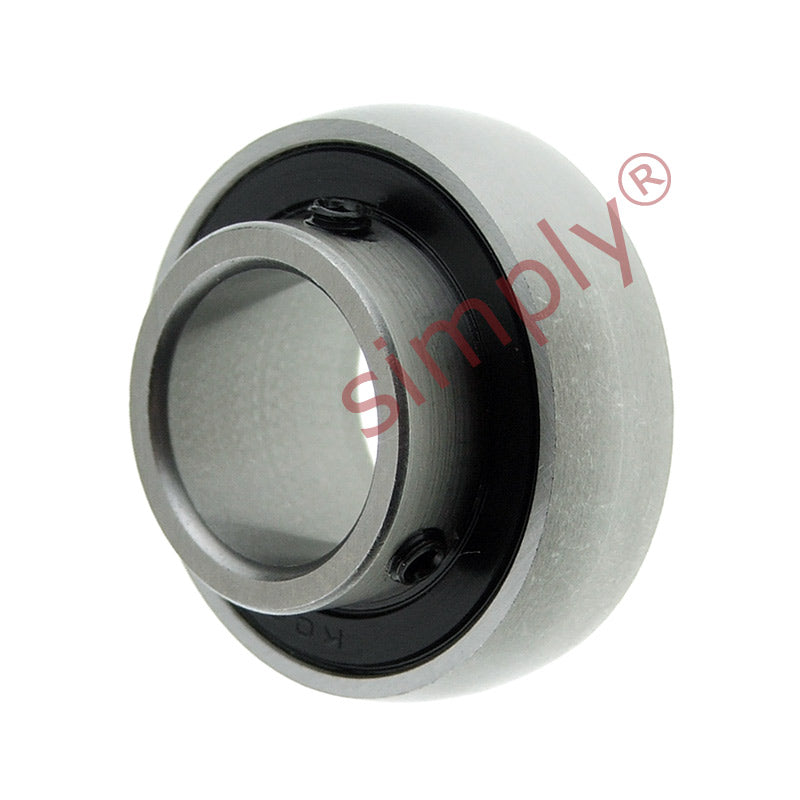

K002 Metric Grub Screw Type Bearing Insert with 15mm Bore 32mm Outside Dia
K002 Metric Grub Screw Type Bearing Insert with 15mm Bore 32mm Outside Dia
Regular price
Rs. 875.65
Regular price
Sale price
Rs. 875.65
Taxes included.
In stock
Price Break
10+
Rs. 779.33
19+
Rs. 735.55
29+
Rs. 726.79
39+
Rs. 718.03
49+
Rs. 709.28
74+
Rs. 700.52
99+
Rs. 656.74
199+
Rs. 647.98
249+
Rs. 639.22
499+
Rs. 630.47
999+
Rs. 612.96
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Style:
- K
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 32mm |
| Bi | 16.5mm |
| Be | 9mm |
| r | 0.5mm |
| n | 4.5mm |
| G | 3.5mm |
| W | 20.02mm |
| Grub screw | M4X0.5 |
| Dynamic load | 5586N ~ 569.613 kgf |
| Static load | 2842N ~ 289.803 kgf |
| Weight | 0.05 kg |
