SKU: JUM-02-25

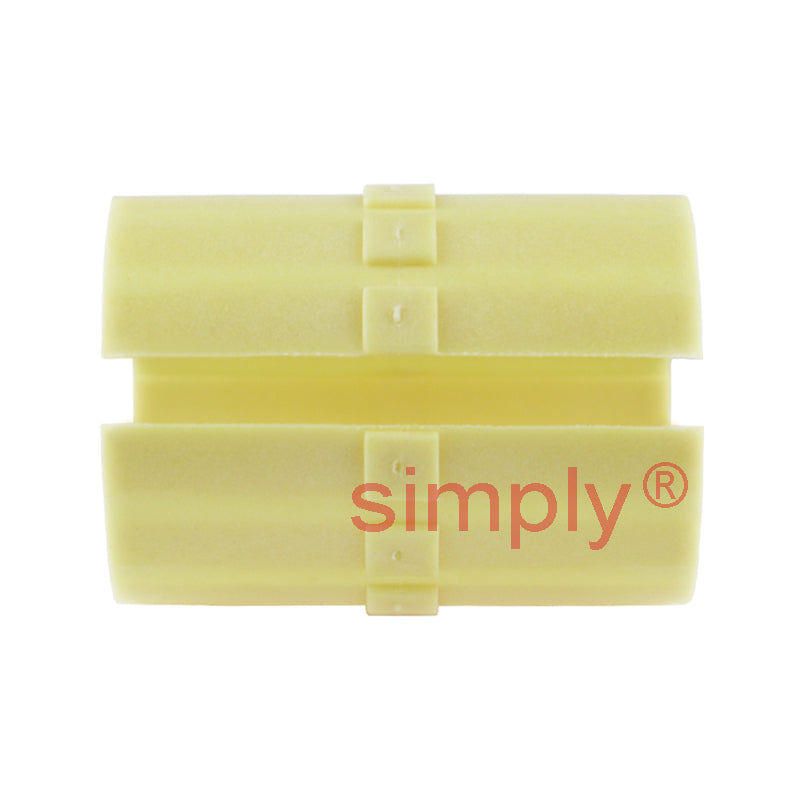

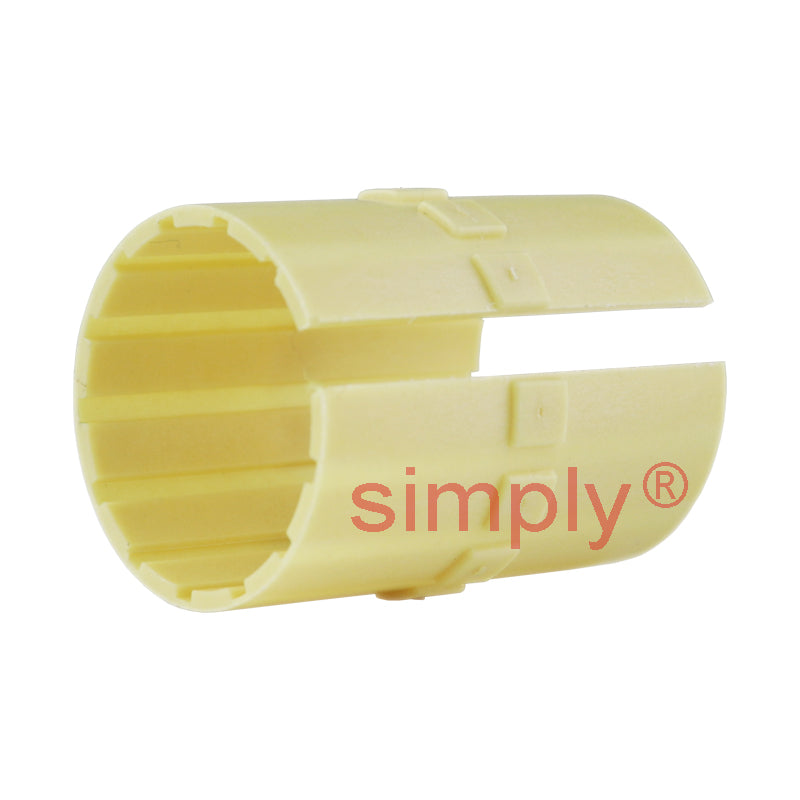

Igus drylin JUM-02-25 Linear Slide Bearing 25x28x39mm
Igus drylin JUM-02-25 Linear Slide Bearing 25x28x39mm
Regular price
Rs. 2,425.92
ex VAT
Regular price
Sale price
Rs. 2,425.92
ex VAT
In stock
Price Break
10+
Rs. 2,159.07
19+
Rs. 2,037.77
29+
Rs. 2,013.51
39+
Rs. 1,989.25
49+
Rs. 1,965.00
74+
Rs. 1,940.74
99+
Rs. 1,819.44
199+
Rs. 1,795.18
249+
Rs. 1,770.92
499+
Rs. 1,746.66
999+
Rs. 1,698.14
Couldn't load pickup availability
Description
Description
IGUS Iglidur® J drylin R Liners: The material used in this product is iglidur® J. This material is suitable for indoor or outdoor use and is maintenance free up to 5 years. In environments such as bag forming, fulling and sealing machinery this product provides a long service life making this a very cost effective alternative to other products alike.
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 28mm
- Length:
- 39mm
Technical
Technical

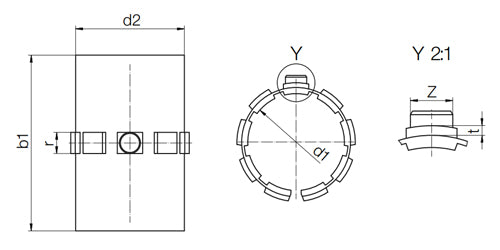

| d1 | 25mm |
|---|---|
| d2 | 28mm |
| b1 | 39mm |
| r | 5mm |
| t | 0.8mm |
| z | 4mm |
| di | 28mm |
| B | 40mm |
| r1 | 5mm |
| t1 | 1mm |
| f1 | 2mm |
| Z1 | 4.1mm |
| d1 Tolerance | +0.030 +0.070mm |
| di Tolerance | H7 |
| B Tolerance | h10 |
| r1 Tolerance | +0.05mm |
| t1 Tolerance | +0.1mm |
| f1 Tolerance | +0.5mm |
| z1 Tolerance | 0.2mm |
| Max. long-term application temperature | 90 deg C |
| Lower application temperature | -50 deg C |
