• Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch
1 1

SKU: JTT1210-2RS

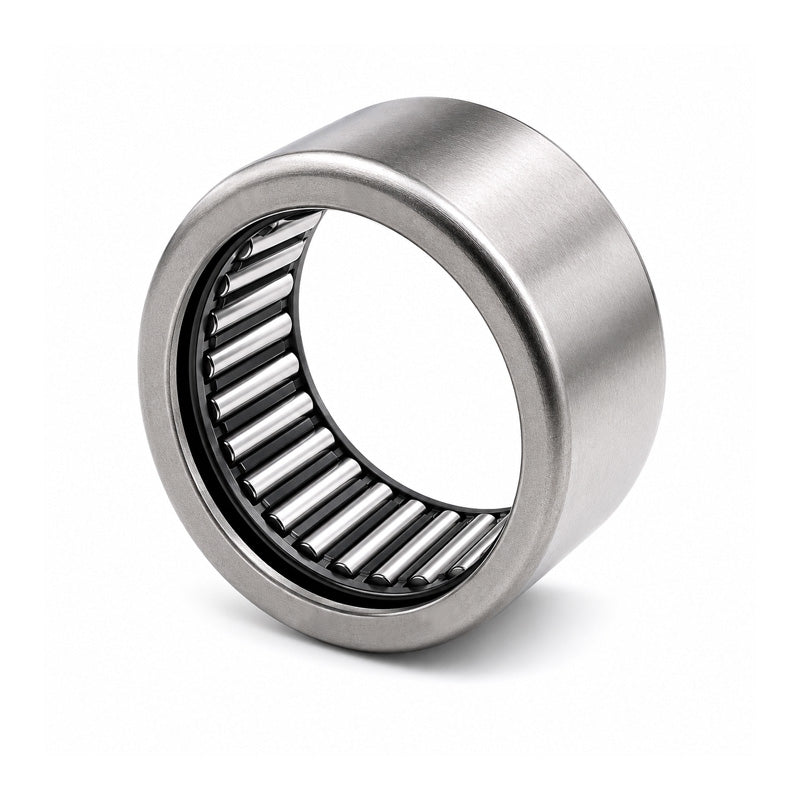

Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch

Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch
Rs. 2,452.84
Rs. 2,452.84
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 2,183.03
19+ Rs. 2,060.39
29+ Rs. 2,035.86
39+ Rs. 2,011.33
49+ Rs. 1,986.80
74+ Rs. 1,962.27
99+ Rs. 1,839.63
199+ Rs. 1,815.10
249+ Rs. 1,790.57
499+ Rs. 1,766.04
999+ Rs. 1,716.99
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical,. Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:
Torrington - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
25.4mm = 1 inch
Width:
15.88mm = 0.625 (5/8) inch
Technical
Inside diameter 3/4 inch
Outside diameter 1 inch
Width 5/8 inch
Dynamic load 2230 lbf
Static load 2740 lbf
Limiting speed (grease) 10000 rpm
