SKU: JSC265SS316-JUB

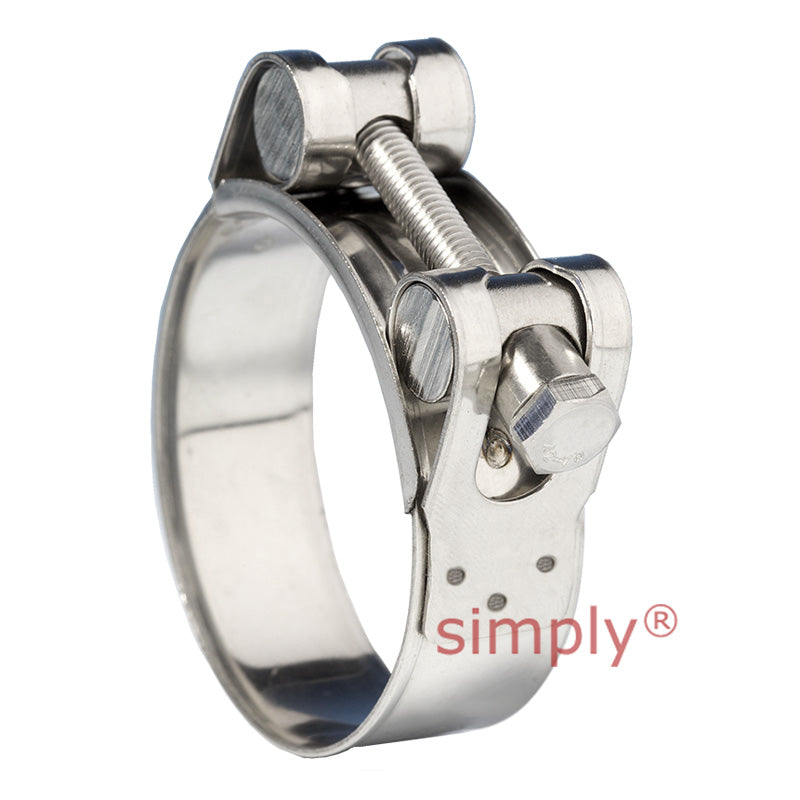

JSC265SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 253mm-265mm Band Width 25mm
JSC265SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 253mm-265mm Band Width 25mm
Regular price
Rs. 3,721.51
Regular price
Sale price
Rs. 3,721.51
Taxes included.
In stock
Price Break
10+
Rs. 3,312.14
19+
Rs. 3,126.07
29+
Rs. 3,088.85
39+
Rs. 3,051.64
49+
Rs. 3,014.42
74+
Rs. 2,977.21
99+
Rs. 2,791.13
199+
Rs. 2,753.92
249+
Rs. 2,716.70
499+
Rs. 2,679.49
999+
Rs. 2,605.06
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 253mm
- Max Adjustment Range:
- 265mm
Technical
Technical
| Adjustment Range | 253mm - 265mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
