SKU: JSC265SS-JUB

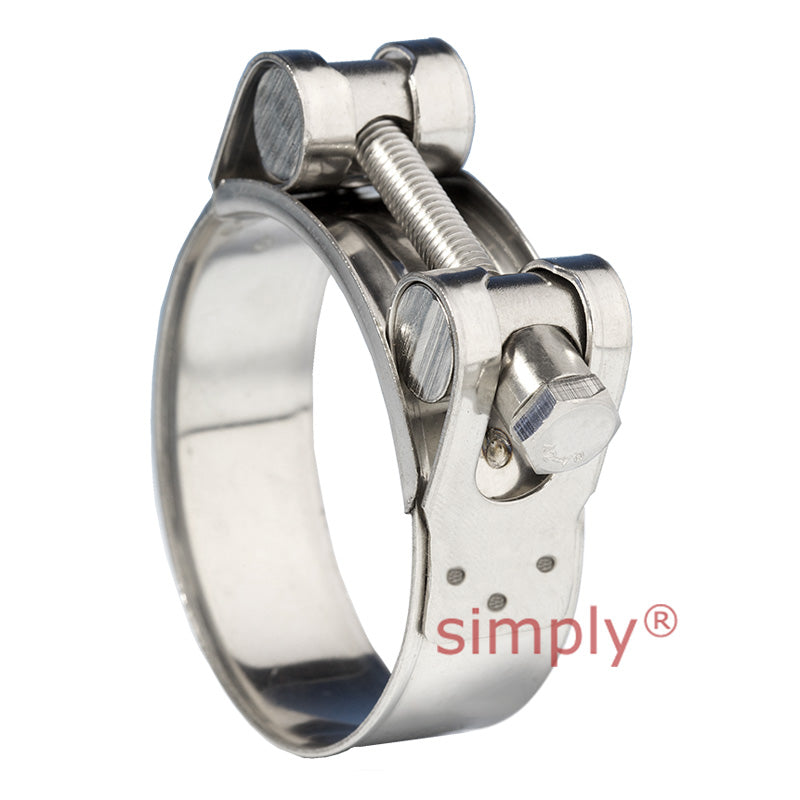

JSC265SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 253mm-265mm Band Width 25mm
JSC265SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 253mm-265mm Band Width 25mm
Regular price
Rs. 2,266.07
ex VAT
Regular price
Sale price
Rs. 2,266.07
ex VAT
Low stock
Price Break
5+
Rs. 2,243.41
10+
Rs. 2,152.77
20+
Rs. 2,107.45
50+
Rs. 2,039.46
100+
Rs. 1,994.14
500+
Rs. 1,880.84
1000+
Rs. 1,586.25
Couldn't load pickup availability
Description
Description
304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 253mm
- Max Adjustment Range:
- 265mm
Technical
Technical
| Adjustment Range | 253mm - 265mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
