SKU: JSC130SS316-JUB

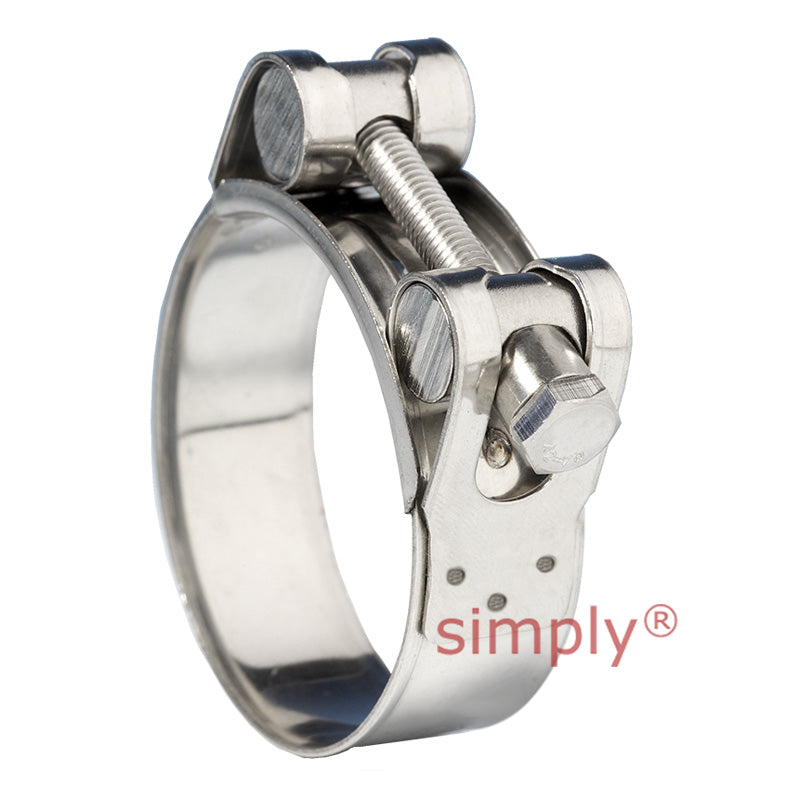

JSC130SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 122mm-130mm Band Width 25mm
JSC130SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 122mm-130mm Band Width 25mm
Regular price
Rs. 2,527.63
ex VAT
Regular price
Sale price
Rs. 2,527.63
ex VAT
In stock
Price Break
5+
Rs. 2,502.35
10+
Rs. 2,401.25
20+
Rs. 2,350.70
50+
Rs. 2,274.87
100+
Rs. 2,224.31
500+
Rs. 2,097.93
1000+
Rs. 1,769.34
Couldn't load pickup availability
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 122mm
- Max Adjustment Range:
- 130mm
Technical
Technical
| Adjustment Range | 122mm - 130mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.2mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
