SKU: JSC103SS316-JUB

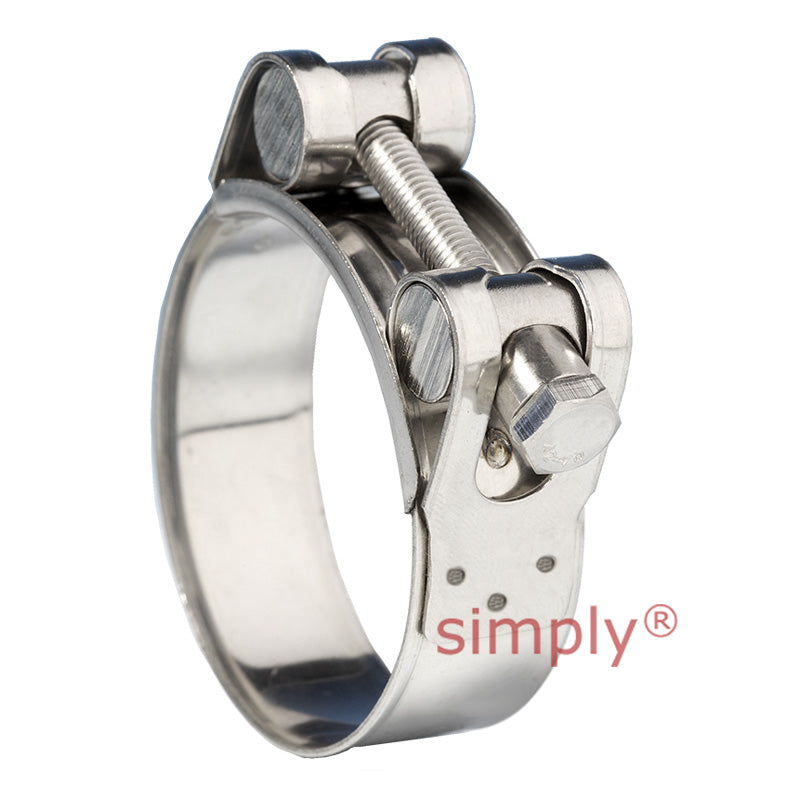

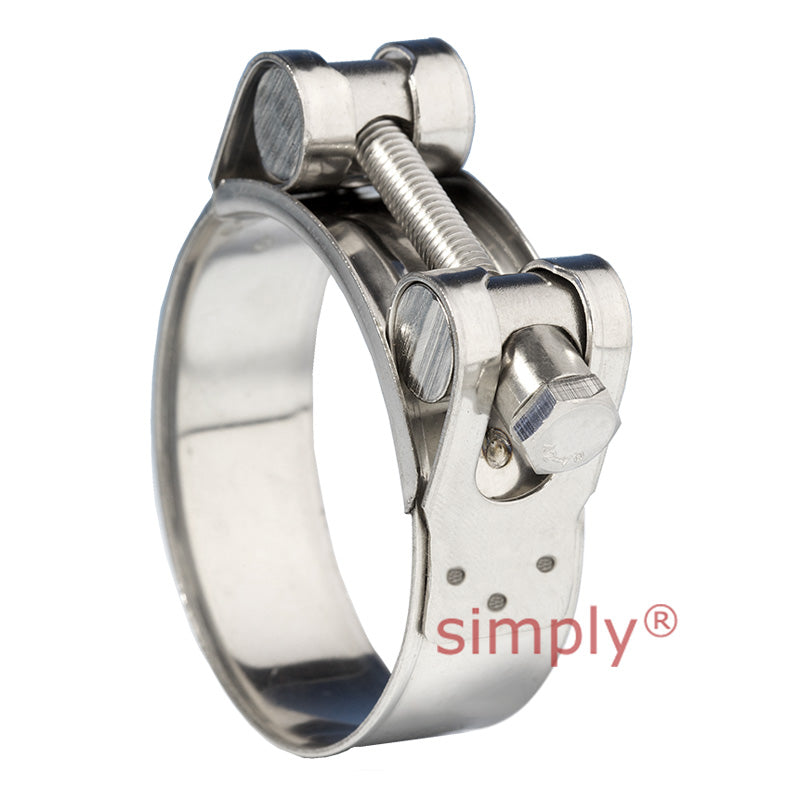

JSC103SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 98mm-103mm Band Width 25mm
JSC103SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 98mm-103mm Band Width 25mm
Regular price
Rs. 2,551.41
Regular price
Sale price
Rs. 2,551.41
Taxes included.
Low stock
Price Break
5+
Rs. 2,525.90
10+
Rs. 2,423.84
20+
Rs. 2,372.81
50+
Rs. 2,296.27
100+
Rs. 2,245.24
500+
Rs. 2,117.67
1000+
Rs. 1,785.99
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 98mm
- Max Adjustment Range:
- 103mm
Technical
Technical
| Adjustment Range | 98mm - 103mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.2mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
