SKU: JSC063SS-JUB

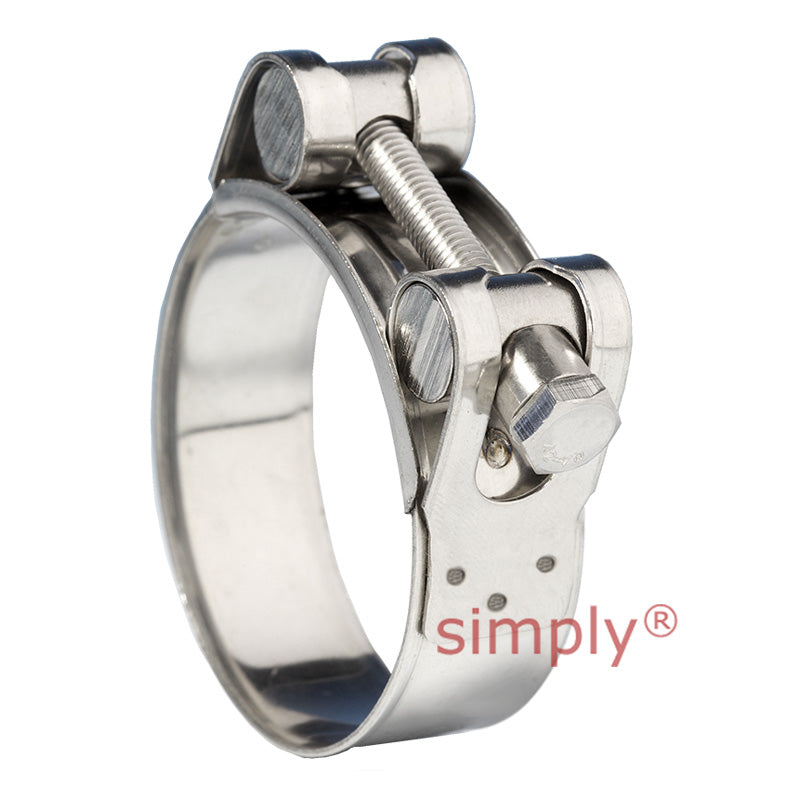

JSC063SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 60mm-63mm Band Width 20mm
JSC063SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 60mm-63mm Band Width 20mm
Regular price
Rs. 705.38
Regular price
Sale price
Rs. 705.38
Taxes included.
In stock
Price Break
5+
Rs. 698.33
10+
Rs. 670.11
20+
Rs. 656.00
50+
Rs. 634.84
100+
Rs. 620.73
500+
Rs. 585.47
1000+
Rs. 493.77
Description
Description
304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 20mm
- Min Adjustment Range:
- 60mm
- Max Adjustment Range:
- 63mm
Technical
Technical
| Adjustment Range | 60mm - 63mm |
|---|---|
| Band Width (+/- 0.1) | 20mm |
| Band Thickness (+/- 0.1) | 1mm |
| Recommended Torque | 6Nm |
| Maximum Torque | 8Nm |
| Screw Head | 10mm |
