SKU: JSC059SS316-JUB

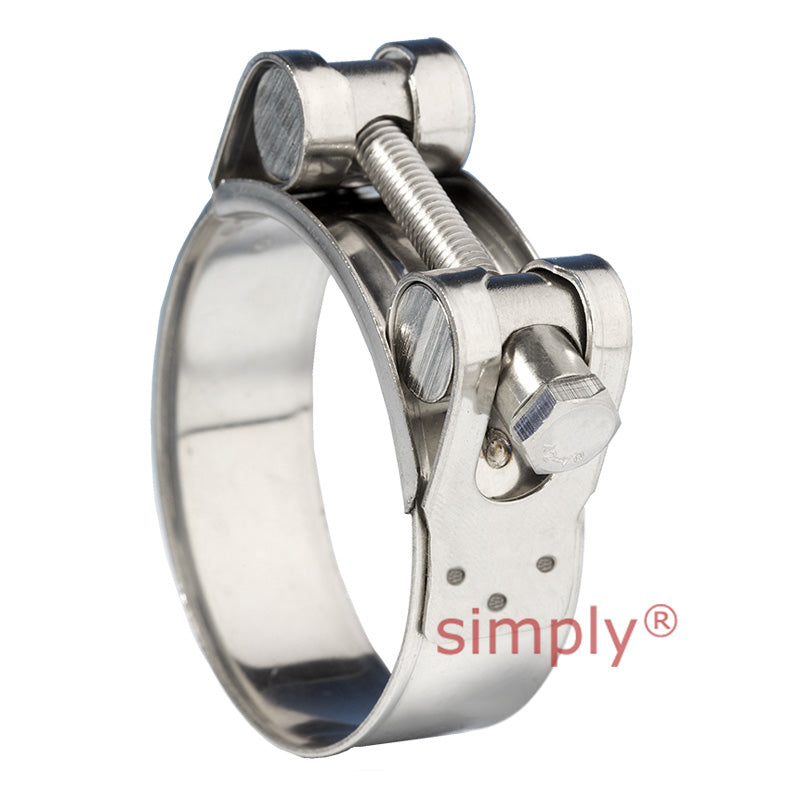

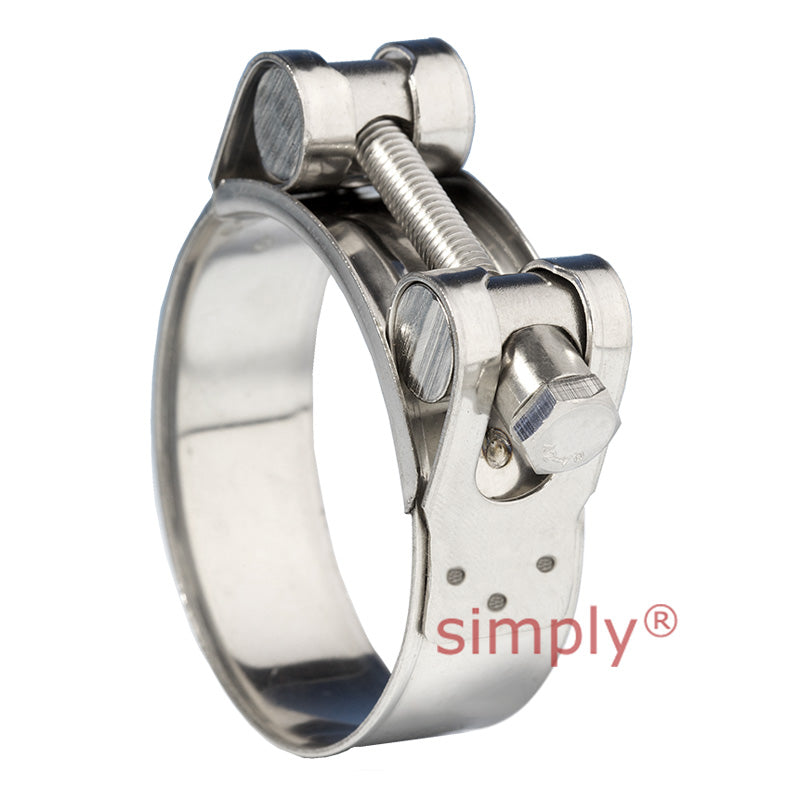

JSC059SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 56mm-59mm Band Width 20mm
JSC059SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 56mm-59mm Band Width 20mm
Regular price
Rs. 1,132.97
Regular price
Sale price
Rs. 1,132.97
Taxes included.
Low stock
Price Break
5+
Rs. 1,121.64
10+
Rs. 1,076.32
20+
Rs. 1,053.66
50+
Rs. 1,019.67
100+
Rs. 997.01
500+
Rs. 940.37
1000+
Rs. 793.08
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 20mm
- Min Adjustment Range:
- 56mm
- Max Adjustment Range:
- 59mm
Technical
Technical
| Adjustment Range | 56mm - 59mm |
|---|---|
| Band Width (+/- 0.1) | 20mm |
| Band Thickness (+/- 0.1) | 1mm |
| Recommended Torque | 6Nm |
| Maximum Torque | 8Nm |
| Screw Head | 10mm |
