SKU: JSC039SS316-JUB

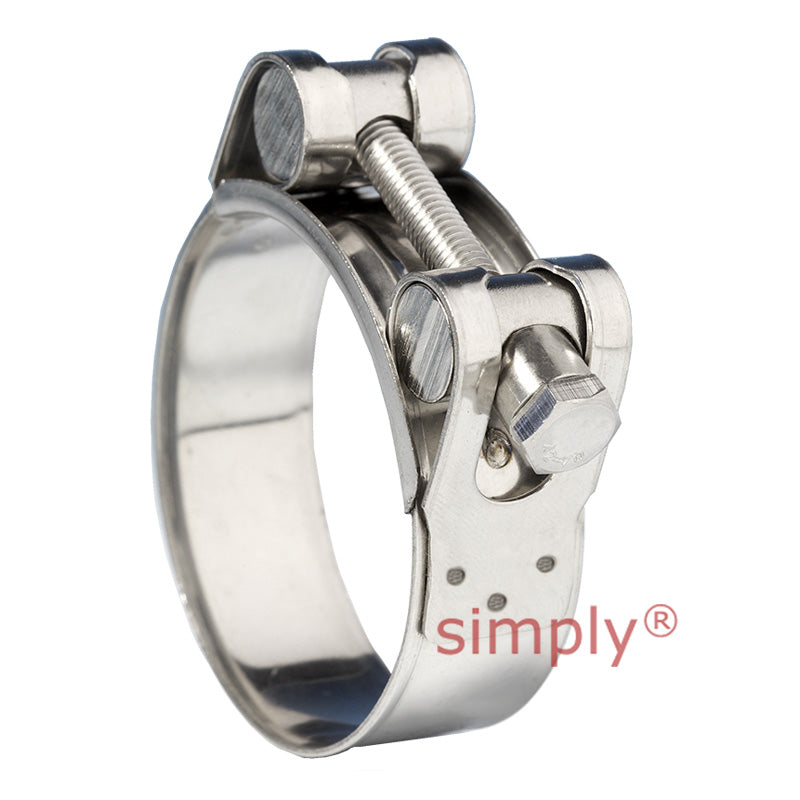

JSC039SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 36mm-39mm Band Width 20mm
JSC039SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 36mm-39mm Band Width 20mm
Regular price
Rs. 1,120.58
ex VAT
Regular price
Sale price
Rs. 1,120.58
ex VAT
In stock
Price Break
5+
Rs. 1,109.37
10+
Rs. 1,064.55
20+
Rs. 1,042.14
50+
Rs. 1,008.52
100+
Rs. 986.11
500+
Rs. 930.08
1000+
Rs. 784.41
Couldn't load pickup availability
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 20mm
- Min Adjustment Range:
- 36mm
- Max Adjustment Range:
- 39mm
Technical
Technical
| Adjustment Range | 36mm - 39mm |
|---|---|
| Band Width (+/- 0.1) | 20mm |
| Band Thickness (+/- 0.1) | 1mm |
| Recommended Torque | 6Nm |
| Maximum Torque | 8Nm |
| Screw Head | 10mm |
