SKU: HT44-5M-15F-DRIVEFLEX

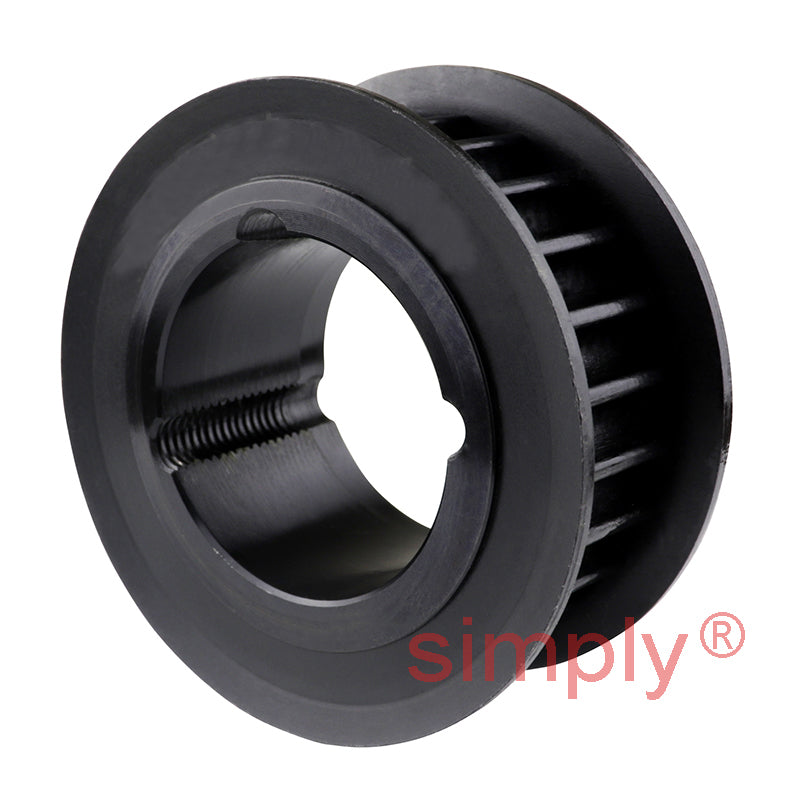

Drive-Flex TL44-5M-15F - 5mm Pitch 44 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 15mm Wide Belts
Drive-Flex TL44-5M-15F - 5mm Pitch 44 Tooth Flanged HTD Type Steel Taper Bore Timing Pulley for 15mm Wide Belts
Regular price
Rs. 2,550.13
Regular price
Sale price
Rs. 2,550.13
Taxes included.
In stock
Price Break
5+
Rs. 2,524.63
10+
Rs. 2,422.62
20+
Rs. 2,371.62
50+
Rs. 2,295.12
100+
Rs. 2,244.11
500+
Rs. 2,116.61
1000+
Rs. 1,785.09
Description
Description
HTD Taper Bore Timing Pulleys: High torque drive (HTD) timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
- Brand / Quality:
- Drive-Flex - High Quality
- Number of Teeth:
- 44
- Pitch:
- 5mm
- Item Type:
- Taper Bore Pulley
- Maximum Belt Width:
- 15mm
Technical
Technical
| --- | Pulley Dimensions |
|---|---|
| Pitch | 5mm |
| Number of Teeth | 44 |
| Type | 1F Taper Bore |
| Bush | <a href="advanced_search_result.php?sort=2a&search_in_description=0&keywords=1108+tapered+locking+bush ">1108 Click Here</a> |
| Dp | 70.03mm |
| De | 68.89mm |
| Df | 75mm |
| F | 20.5mm |
| S | 22mm |
| Weight | 0.40kg |
