SKU: HMV96E-BGL

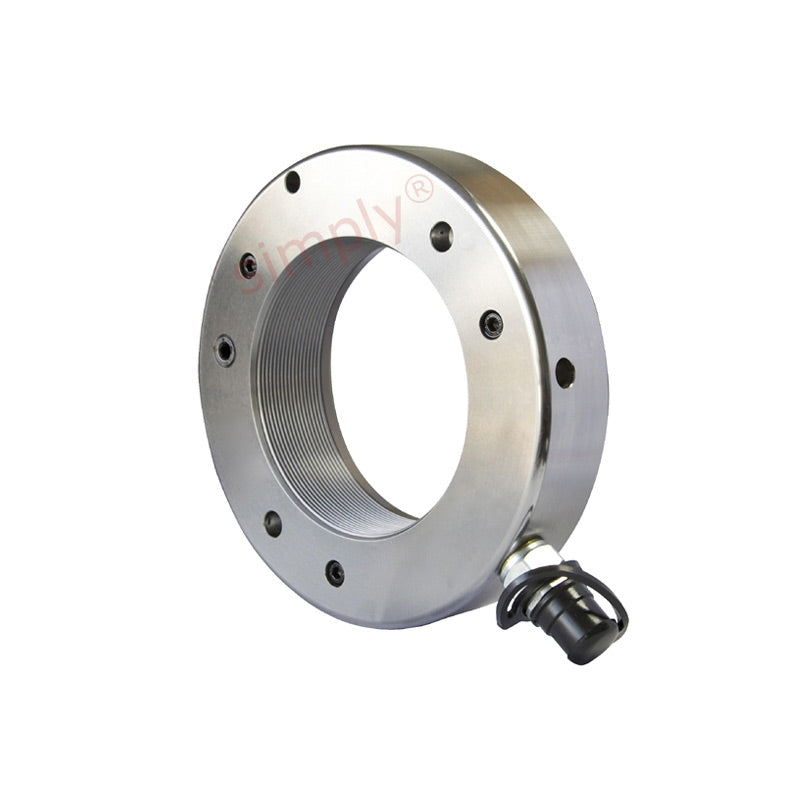

BGL HMV96E Metric Hydraulic Nut Tr480x5 Thread - Allow 1-2 Days
BGL HMV96E Metric Hydraulic Nut Tr480x5 Thread - Allow 1-2 Days
Regular price
Rs. 704,753.23
ex VAT
Regular price
Sale price
Rs. 704,753.23
ex VAT
In stock
Price Break
10+
Rs. 627,230.37
19+
Rs. 591,992.71
29+
Rs. 584,945.18
39+
Rs. 577,897.65
49+
Rs. 570,850.12
74+
Rs. 563,802.58
99+
Rs. 528,564.92
199+
Rs. 521,517.39
249+
Rs. 514,469.86
499+
Rs. 507,422.33
999+
Rs. 493,327.26
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- Tr480x5
- Inside Diameter:
- 482mm
- Outside Diameter:
- 612mm
- Width:
- 65mm
- Flange Width:
- 12mm
Technical
Technical
| G Thread | Tr480x5 |
|---|---|
| d1 | 482mm |
| d2 | 587mm |
| d3 | 612mm |
| B | 65mm |
| B1 | 12mm |
| Permitted piston displacement | 19mm |
| Piston area | 48600mm2 |
