SKU: HMV84E-BGL

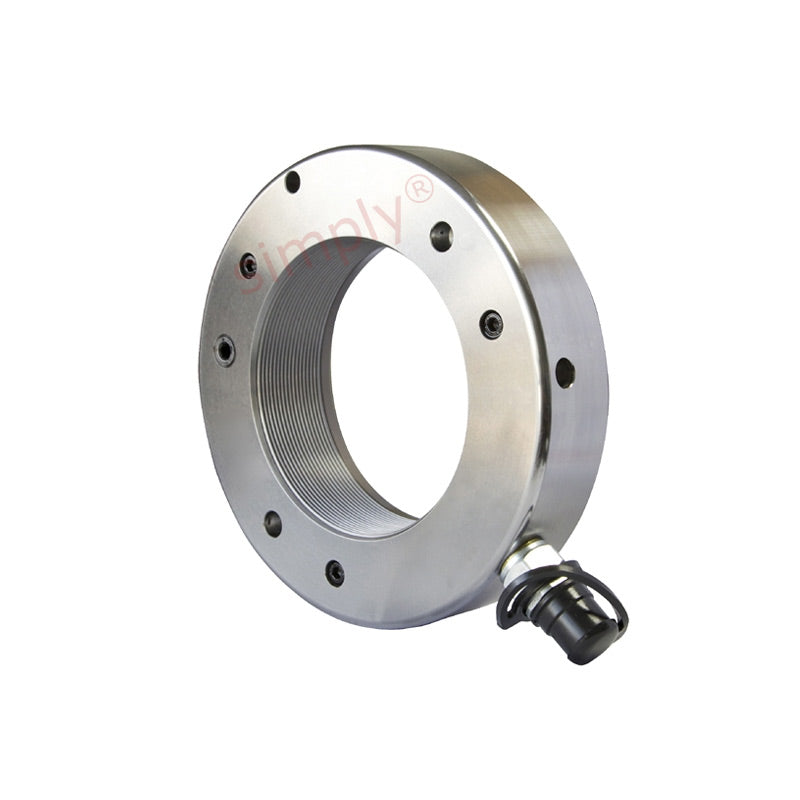

BGL HMV84E Metric Hydraulic Nut Tr420x5 Thread - Allow 1-2 Days
BGL HMV84E Metric Hydraulic Nut Tr420x5 Thread - Allow 1-2 Days
Regular price
Rs. 598,104.73
ex VAT
Regular price
Sale price
Rs. 598,104.73
ex VAT
In stock
Price Break
10+
Rs. 532,313.21
19+
Rs. 502,407.97
29+
Rs. 496,426.93
39+
Rs. 490,445.88
49+
Rs. 484,464.83
74+
Rs. 478,483.78
99+
Rs. 448,578.55
199+
Rs. 442,597.50
249+
Rs. 436,616.45
499+
Rs. 430,635.41
999+
Rs. 418,673.31
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- Tr420x5
- Inside Diameter:
- 422mm
- Outside Diameter:
- 546mm
- Width:
- 61mm
- Flange Width:
- 11mm
Technical
Technical
| G Thread | Tr420x5 |
|---|---|
| d1 | 422mm |
| d2 | 522mm |
| d3 | 546mm |
| B | 61mm |
| B1 | 11mm |
| Permitted piston displacement | 17mm |
| Piston area | 40000mm2 |
