SKU: HMV34E-BGL

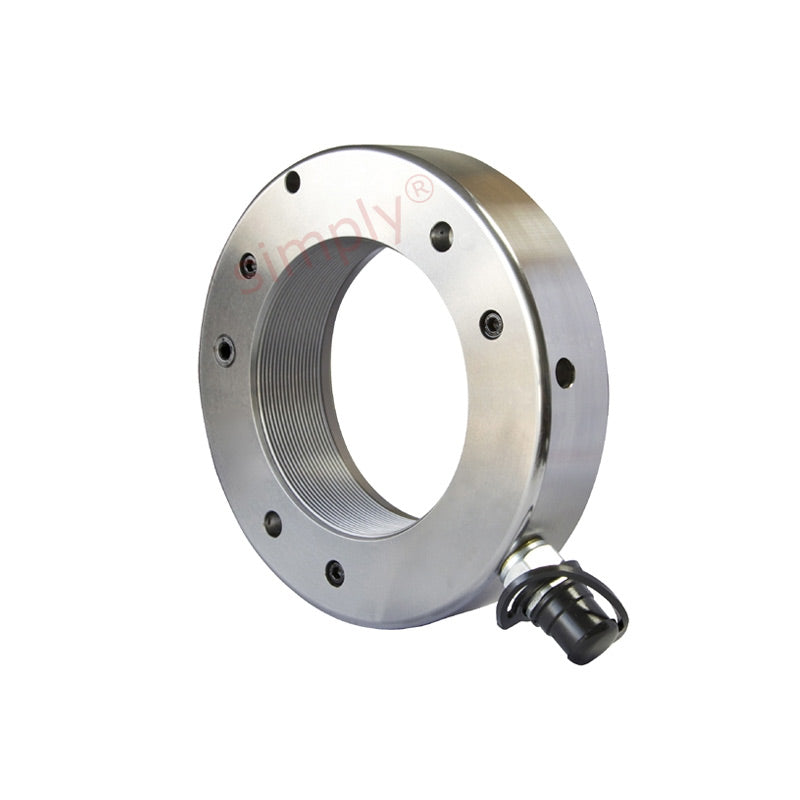

BGL HMV34E Metric Hydraulic Nut M170x3 Thread - Allow 1-2 Days
BGL HMV34E Metric Hydraulic Nut M170x3 Thread - Allow 1-2 Days
Regular price
Rs. 176,595.49
Regular price
Sale price
Rs. 176,595.49
Taxes included.
In stock
Price Break
10+
Rs. 157,169.99
19+
Rs. 148,340.21
29+
Rs. 146,574.26
39+
Rs. 144,808.30
49+
Rs. 143,042.35
74+
Rs. 141,276.39
99+
Rs. 132,446.62
199+
Rs. 130,680.66
249+
Rs. 128,914.71
499+
Rs. 127,148.75
999+
Rs. 123,616.84
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M170x3
- Inside Diameter:
- 170.5mm
- Outside Diameter:
- 244mm
- Width:
- 41mm
- Flange Width:
- 7mm
Technical
Technical
| G Thread | M170x3 |
|---|---|
| d1 | 170.5mm |
| d2 | 235mm |
| d3 | 244mm |
| B | 41mm |
| B1 | 7mm |
| Permitted piston displacement | 6mm |
| Piston area | 9400mm2 |
