SKU: HMV24E-BGL

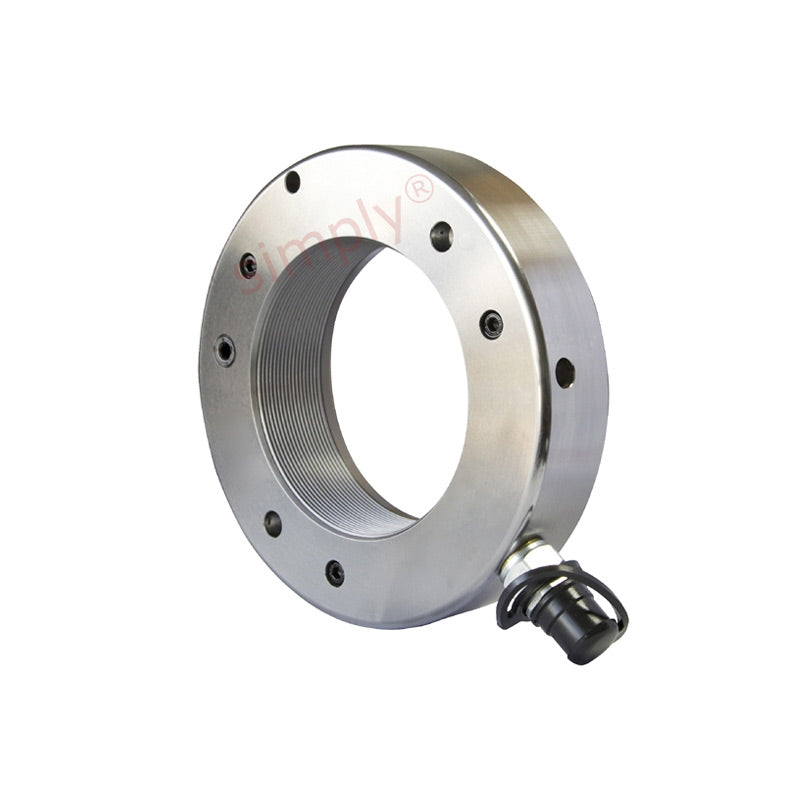

BGL HMV24E Metric Hydraulic Nut M120x2 Thread - Allow 1-2 Days
BGL HMV24E Metric Hydraulic Nut M120x2 Thread - Allow 1-2 Days
Regular price
Rs. 139,398.90
ex VAT
Regular price
Sale price
Rs. 139,398.90
ex VAT
In stock
Price Break
10+
Rs. 124,065.02
19+
Rs. 117,095.08
29+
Rs. 115,701.09
39+
Rs. 114,307.10
49+
Rs. 112,913.11
74+
Rs. 111,519.12
99+
Rs. 104,549.18
199+
Rs. 103,155.19
249+
Rs. 101,761.20
499+
Rs. 100,367.21
999+
Rs. 97,579.23
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M120x2
- Inside Diameter:
- 120.5mm
- Outside Diameter:
- 188mm
- Width:
- 38mm
- Flange Width:
- 6mm
Technical
Technical
| G Thread | M120x2 |
|---|---|
| d1 | 120.5mm |
| d2 | 179mm |
| d3 | 188mm |
| B | 38mm |
| B1 | 6mm |
| Permitted piston displacement | 5mm |
| Piston area | 6000mm2 |
