SKU: HMV20E-BGL

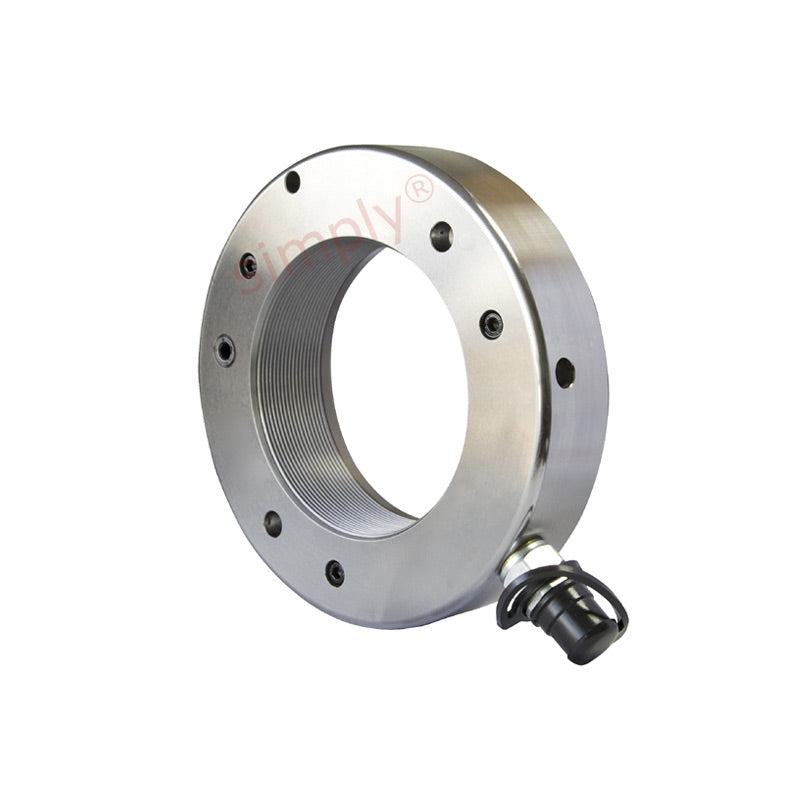

BGL HMV20E Metric Hydraulic Nut M100x2 Thread - Allow 1-2 Days
BGL HMV20E Metric Hydraulic Nut M100x2 Thread - Allow 1-2 Days
Regular price
Rs. 125,919.69
ex VAT
Regular price
Sale price
Rs. 125,919.69
ex VAT
In stock
Price Break
10+
Rs. 112,068.52
19+
Rs. 105,772.54
29+
Rs. 104,513.34
39+
Rs. 103,254.15
49+
Rs. 101,994.95
74+
Rs. 100,735.75
99+
Rs. 94,439.77
199+
Rs. 93,180.57
249+
Rs. 91,921.37
499+
Rs. 90,662.18
999+
Rs. 88,143.78
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M100x2
- Inside Diameter:
- 100.5mm
- Outside Diameter:
- 166mm
- Width:
- 38mm
- Flange Width:
- 6mm
Technical
Technical
| G Thread | M100x2 |
|---|---|
| d1 | 100.5mm |
| d2 | 158mm |
| d3 | 166mm |
| B | 38mm |
| B1 | 6mm |
| Permitted piston displacement | 5mm |
| Piston area | 5100mm2 |
