SKU: HMV126E-SKF

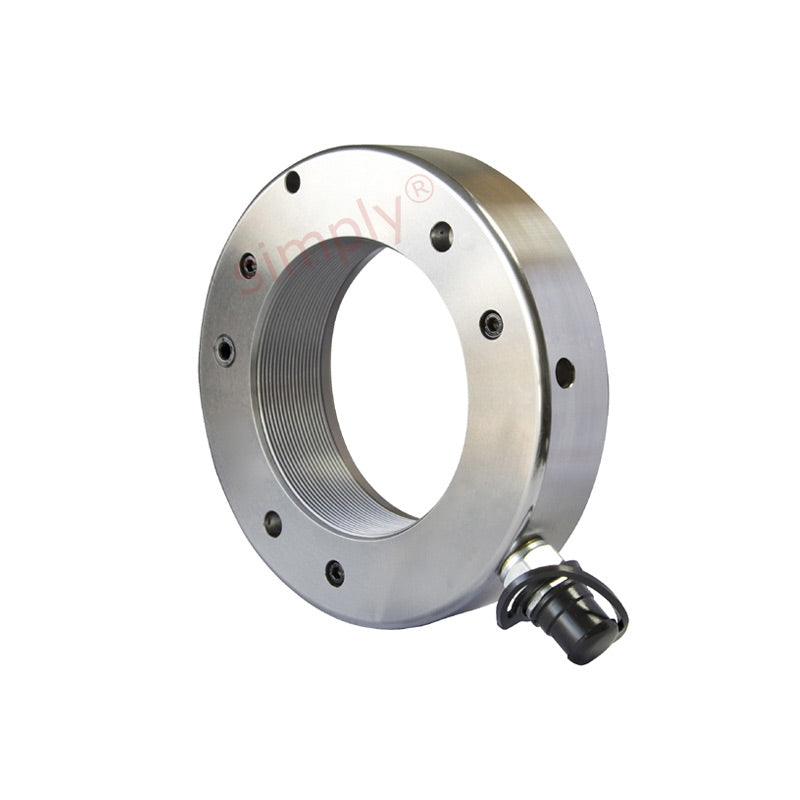

SKF HMV126E Metric Hydraulic Nut Tr630x6 Thread
SKF HMV126E Metric Hydraulic Nut Tr630x6 Thread
Regular price
Rs. 1,037,429.53
Regular price
Sale price
Rs. 1,037,429.53
Taxes included.
In stock
Price Break
10+
Rs. 923,312.28
19+
Rs. 871,440.81
29+
Rs. 861,066.51
39+
Rs. 850,692.21
49+
Rs. 840,317.92
74+
Rs. 829,943.62
99+
Rs. 778,072.15
199+
Rs. 767,697.85
249+
Rs. 757,323.56
499+
Rs. 746,949.26
999+
Rs. 726,200.67
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | Tr630x6 |
|---|---|
| d1 | 632 |
| d2 | 754mm |
| d3 | 782mm |
| B | 74mm |
| B1 | 14mm |
| Permitted piston displacement | 23mm |
| Piston area | 72900mm2 |
