SKU: HMV-38-EBF-HN-SNR

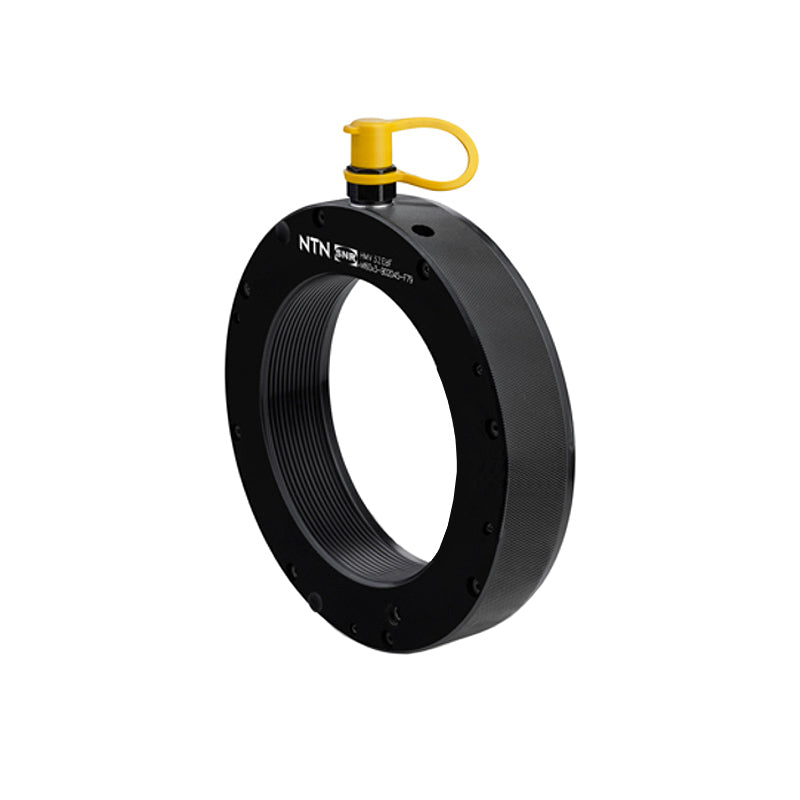

SNR HMV38 Metric Hydraulic Nut with M190x3 Thread - Allow 2-3 Days
SNR HMV38 Metric Hydraulic Nut with M190x3 Thread - Allow 2-3 Days
Regular price
Rs. 229,797.58
ex VAT
Regular price
Sale price
Rs. 229,797.58
ex VAT
In stock
Price Break
10+
Rs. 204,519.85
19+
Rs. 193,029.97
29+
Rs. 190,731.99
39+
Rs. 188,434.02
49+
Rs. 186,136.04
74+
Rs. 183,838.06
99+
Rs. 172,348.19
199+
Rs. 170,050.21
249+
Rs. 167,752.23
499+
Rs. 165,454.26
999+
Rs. 160,858.31
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M190x3
- Inside Diameter:
- 191mm
- Outside Diameter:
- 270mm
- Width:
- 50mm
- Flange Width:
- 8mm
Technical
Technical
| HMV | HMV38 |
|---|---|
| Thread G | M190x3 |
| Outside Diameter D | 270mm |
| Total Width B | 50mm |
| Piston Diameter max. d2 | 266mm |
| Permitted Piston Stroke | 7mm |
| Flange Width B1 | 8mm |
| Body Width B2 | 42mm |
| Diameter d1 | 191mm |
| Piston Surface Area | 11800mm2 |
| Weight | 10.7kg |
