SKU: HMV-36-EBF-HN-SNR

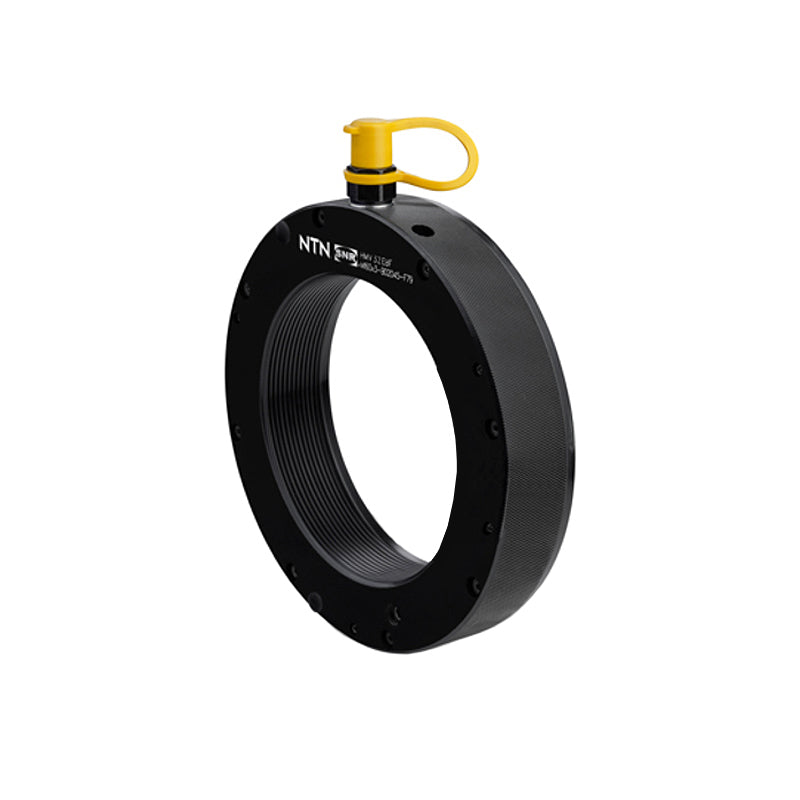

SNR HMV36 Metric Hydraulic Nut with M180x3 Thread - Allow 2-3 Days
SNR HMV36 Metric Hydraulic Nut with M180x3 Thread - Allow 2-3 Days
Regular price
Rs. 221,678.09
ex VAT
Regular price
Sale price
Rs. 221,678.09
ex VAT
In stock
Price Break
10+
Rs. 197,293.50
19+
Rs. 186,209.60
29+
Rs. 183,992.81
39+
Rs. 181,776.03
49+
Rs. 179,559.25
74+
Rs. 177,342.47
99+
Rs. 166,258.57
199+
Rs. 164,041.79
249+
Rs. 161,825.01
499+
Rs. 159,608.22
999+
Rs. 155,174.66
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M180x3
- Inside Diameter:
- 180.5mm
- Outside Diameter:
- 256mm
- Width:
- 48mm
- Flange Width:
- 7mm
Technical
Technical
| HMV | HMV36 |
|---|---|
| Thread G | M180x3 |
| Outside Diameter D | 256mm |
| Total Width B | 48mm |
| Piston Diameter max. d2 | 252mm |
| Permitted Piston Stroke | 6mm |
| Flange Width B1 | 7mm |
| Body Width B2 | 41mm |
| Diameter d1 | 180.5mm |
| Piston Surface Area | 11250mm2 |
| Weight | 9.4kg |
