SKU: HMV-24-EBF-HN-SNR

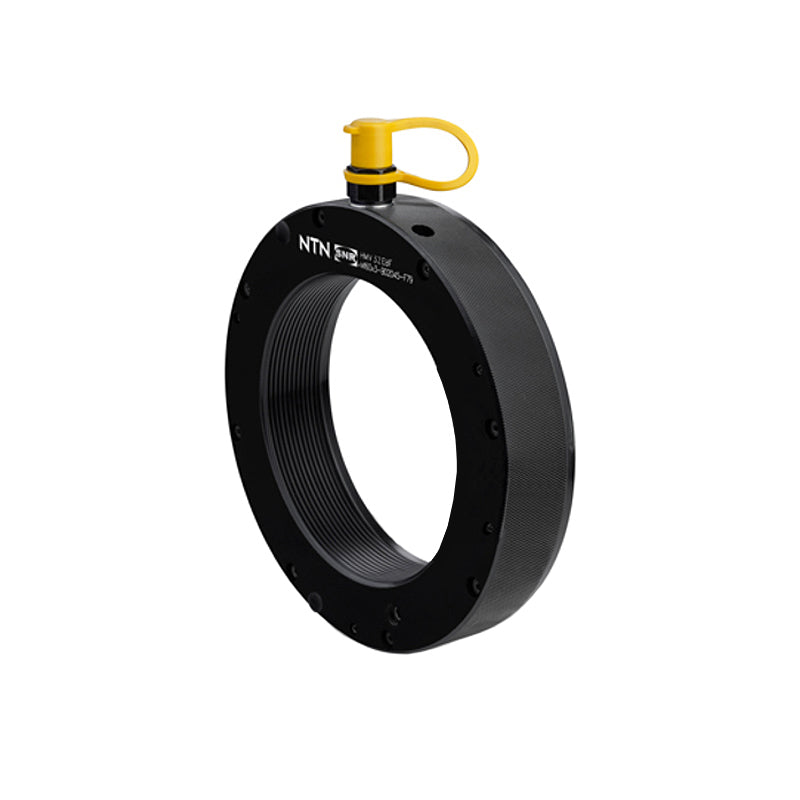

SNR HMV24 Metric Hydraulic Nut with M120x2 Thread - Allow 2-3 Days
SNR HMV24 Metric Hydraulic Nut with M120x2 Thread - Allow 2-3 Days
Regular price
Rs. 148,698.47
ex VAT
Regular price
Sale price
Rs. 148,698.47
ex VAT
In stock
Price Break
10+
Rs. 132,341.64
19+
Rs. 124,906.71
29+
Rs. 123,419.73
39+
Rs. 121,932.75
49+
Rs. 120,445.76
74+
Rs. 118,958.78
99+
Rs. 111,523.85
199+
Rs. 110,036.87
249+
Rs. 108,549.88
499+
Rs. 107,062.90
999+
Rs. 104,088.93
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M120x2
- Inside Diameter:
- 120.5mm
- Outside Diameter:
- 188mm
- Width:
- 44mm
- Flange Width:
- 6mm
Technical
Technical
| HMV | HMV24 |
|---|---|
| Thread G | M120x2 |
| Outside Diameter D | 188mm |
| Total Width B | 44mm |
| Piston Diameter max. d2 | 184mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 6mm |
| Body Width B2 | 38mm |
| Diameter d1 | 120.5mm |
| Piston Surface Area | 5950mm2 |
| Weight | 5.5kg |
