SKU: HMV-20-EBF-HN-SNR

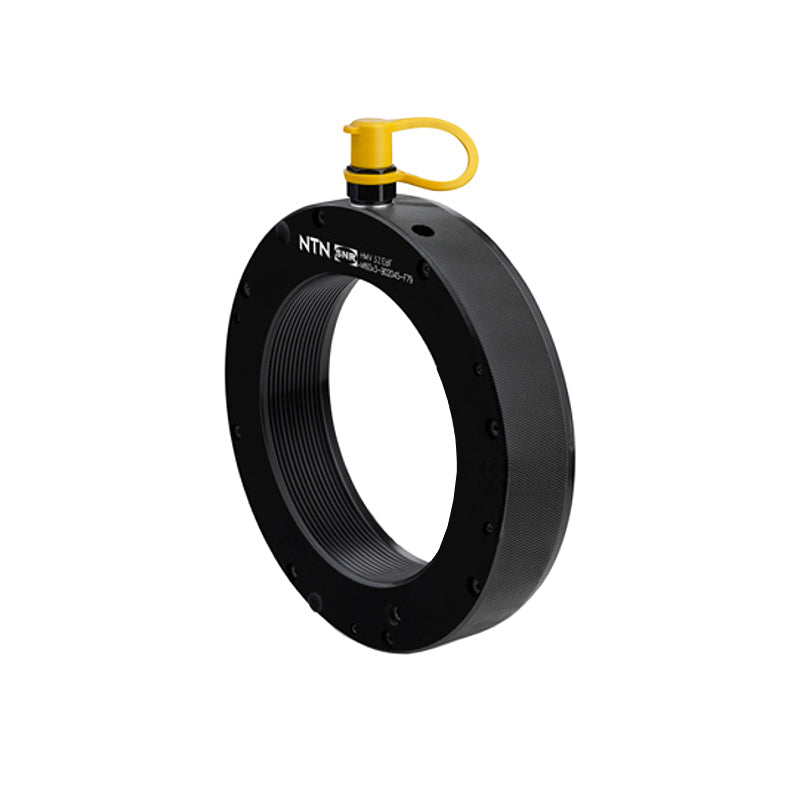

SNR HMV20 Metric Hydraulic Nut with M100x2 Thread - Allow 2-3 Days
SNR HMV20 Metric Hydraulic Nut with M100x2 Thread - Allow 2-3 Days
Regular price
Rs. 138,620.82
ex VAT
Regular price
Sale price
Rs. 138,620.82
ex VAT
In stock
Price Break
10+
Rs. 123,372.53
19+
Rs. 116,441.49
29+
Rs. 115,055.28
39+
Rs. 113,669.07
49+
Rs. 112,282.86
74+
Rs. 110,896.66
99+
Rs. 103,965.62
199+
Rs. 102,579.41
249+
Rs. 101,193.20
499+
Rs. 99,806.99
999+
Rs. 97,034.57
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M100x2
- Inside Diameter:
- 100.5mm
- Outside Diameter:
- 166mm
- Width:
- 44mm
- Flange Width:
- 6mm
Technical
Technical
| HMV | HMV20 |
|---|---|
| Thread G | M100x2 |
| Outside Diameter D | 166mm |
| Total Width B | 44mm |
| Piston Diameter max. d2 | 162mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 6mm |
| Body Width B2 | 38mm |
| Diameter d1 | 100.5mm |
| Piston Surface Area | 5100mm2 |
| Weight | 4.6kg |
