SKU: HMK2830-NTN

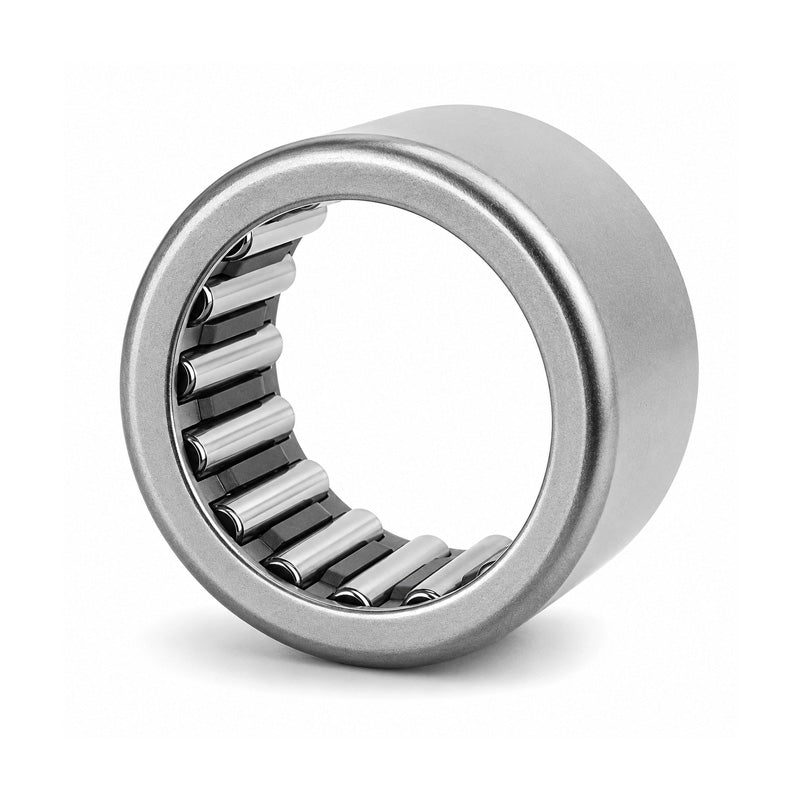

NTN HMK2830 Drawn Cup Needle Roller Bearing with Open End 28x37x30mm
NTN HMK2830 Drawn Cup Needle Roller Bearing with Open End 28x37x30mm
Regular price
Rs. 1,181.61
Regular price
Sale price
Rs. 1,181.61
Taxes included.
In stock
Price Break
10+
Rs. 1,051.63
19+
Rs. 992.55
29+
Rs. 980.74
39+
Rs. 968.92
49+
Rs. 957.10
74+
Rs. 945.29
99+
Rs. 886.21
199+
Rs. 874.39
249+
Rs. 862.58
499+
Rs. 850.76
999+
Rs. 827.13
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
Technical
Technical
| Fw - Inside diameter | 28mm |
|---|---|
| D - Outside diameter | 37mm |
| C - Width of bearing, drawn cup or outer ring | 30mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 35 kN |
| C0r - Static load rating | 54.5 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
